Round Continuous Slot Screen Thread Couplings High Production Efficiency

Product Description:

Continuous Slot Screen is manufactured with V-shaped profile wire which is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wires is fusion welded. The pitch of winding gives different spacing between two adjacent turns of wire. This spacing gives passage for water to enter. The entire process is completed on fully computerized machines.

Continuous Slot Screen Specificarion:

Continuous Slot Screen Characteristic:

• adoption of the wedged wires made a V profile slot. This design ensures the fluent of water filtration and more effective
• wedged wires are spirally wound around a cage of longitudinal support rods in succession which formed high-density uniformed slots and avoid clogging. So that the high production efficiency and long life service of the well are guaranteed.
• arrangement of the longitudinal support rods and the successive slots provide higher compressive property

Regular Specification:

Use:

Johnson Vee Wire Screen continuous-slot construction aims to optimize flow rates, minimize clogging and help develop the water-bearing geological formations faster. It is best applied in the following situations:

Geological formations comprised of small, fine particles

Water wells where gravel packs will be installed

Thin aquifers, where maximum open area is required

Large- and small-diameter deep wells

Pictures:

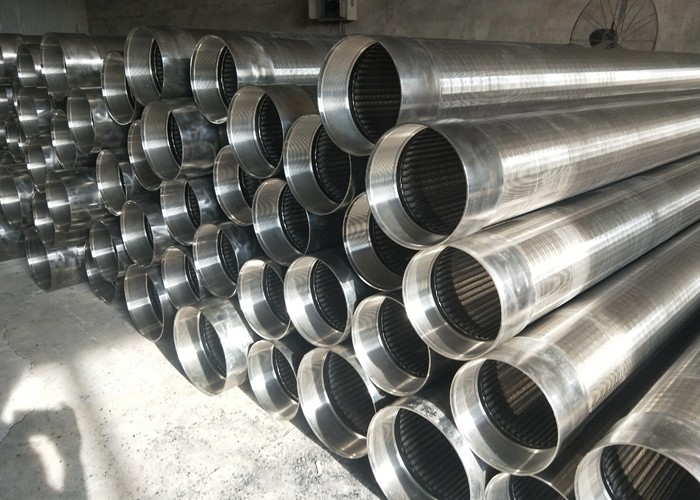

water wire screen

slotted screen pipe

Continuous Slot Wedge Wire Screen Cylinders With Male / Female Thread Couplings Images
