Johnson Slotted Filter Screen Nozzle Stainless Steel 1.5 T / H
Applications of Johnson screen nozzle
Wedge wire nozzles are effective in a wide range of water treatment and other industrial applications for filtering and screening. Such as, under drain media retention elements, flow distributors in demineralizers, water softeners in pressure and gravity sand filters.
Except for filtering and screening applications, wedge wire nozzles have other applications. Just install several nozzles uniformly to be used as collectors at the bottom of the vessels.
Features of wedge wire nozzle
► Non-clogging.
► High open area.
► High filtering performance.
► Corrosion and rust resistance.
► High temperature resistance.
► Economical.
► Easy to install and replacement.
Product Description:
| Product Name | Johnson Water Filter Nozzle |
| Material | Stainless Steel |
| Grade | 304 |
| Slot size | 0.3mm |
| Diameter | 53 mm |
| Screen Lenth | 50 - 55 mm |
| Total Length | 115 - 110 mm |
| Thread Size | 1 1/4 " , 32 mm |
| Nutsert | 1 PCS, 2 PCS |
| Gasket | 1 PCS steel gasket,1 PCS rubber mat |
Characteristic:

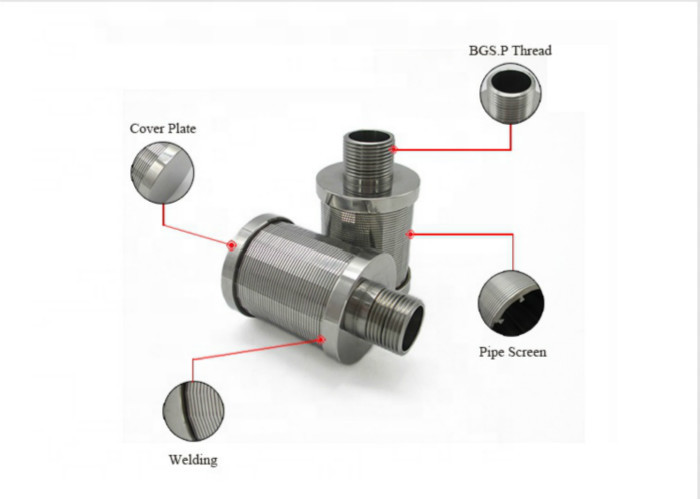

The water screen nozzle is welded with Johnson well screen, thread pipe and steel panel through special welding process. The Johnson well screen is the profile wedge wire screen ,the wire and the support rod is V shape , so the screen filter surface outside is smaller than inside, so that the screen nozzle is not easy to jam. The thread pipe is made by international standard.1 “,1 1/4 “, 2 1/4 “ and so on.
Advantages:
Strong and durable, with long service life.
The gap is even, no leakage of resin, no running material.
High opening rate can meet the requirement of large flow.
The structure is varied and meet different design requirements.
Use:
Water screen nozzle is American technology.water treatment, chemical, petrochemical, pharmaceutical, biotechnology, power plant, ion exchange, yin-yang bed, mixed bed.
Regular Specifications:
| Type | Slot size | Specifications | Flow filter area
0.2mm slot ( reference) |
| D | H | L | M |
| HY-PT-45-A | 0.2-0.5 | 45 | 25 | 90 | 25 | 280 |
| HY-PT-45-B | 0.2-0.5 | 45 | 35 | 100 | 25 | 380 |
| HY-PT-45-C | 0.2-0.5 | 45 | 45 | 110 | 25 | 550 |
| HY-PT-45-D | 0.2-0.5 | 45 | 35 | 55 | 25 | 380 |
| HY-PT-45-E | 0.2-0.5 | 45 | 45 | 65 | 25 | 550 |
| HY-PT-53-A | 0.2-0.5 | 53 | 35 | 100 | 25 | 450 |
| HY-PT-53-B | 0.2-0.5 | 53 | 45 | 110 | 25 | 580 |
| HY-PT-53-C | 0.2-0.5 | 53 | 55 | 120 | 32 | 700 |
| HY-PT-57-A | 0.2-0.5 | 57 | 35 | 100 | 32 | 530 |
| HY-PT-57-B | 0.2-0.5 | 57 | 45 | 110 | 32 | 680 |
| HY-PT-57-C | 0.2-0.5 | 57 | 55 | 120 | 32 | 830 |
| HY-PT-70-A | 0.2-0.5 | 70 | 40 | 105 | 32 | 650 |
| HY-PT-70-B | 0.2-0.5 | 70 | 55 | 115 | 32 | 810 |
