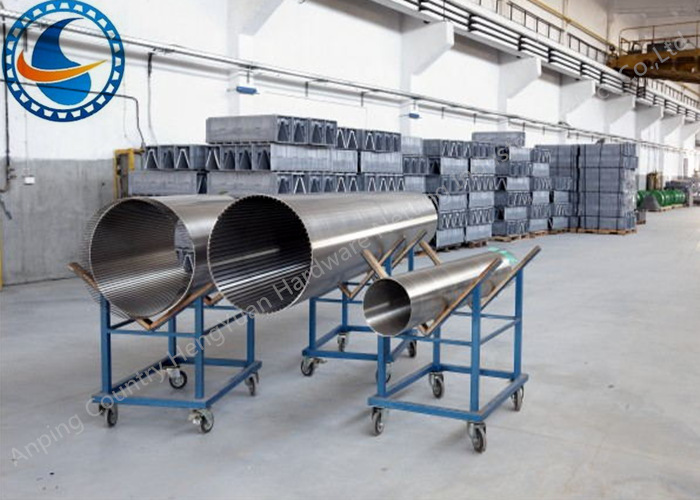

Sand Control Screens ,Continuous Profile Wire Welded Screen
Sand Control Screens Introduction:
Vee wire water well screens, wire wrapped screens pipe, Johnson Screen, spiral screen tube, welded wedge wire screen, reversed slot screen, continuous slot pre-pack, water filter, screen cylinders, stainless steel slot tube, reverse rolled screen, strainer pipe, continuous slot wire wrap well screens, pipe base well screen, ribbed-type wire wrapped screen, stainless steel or low carbon galvanized or mild steel wire screen, wire wrapped liner, woven wedge wire screen, slot wire screen tube, conical well screen, Suction strainers, strainer screen wide slit screens, well point screens, PPS screen, oil screen tube, Basic Specification for Screen Pipe
Material: 304, 302, 304L, 316, 316L stainless steel, or Low carton, low carton galvanized steel (LCG)
O.D:1inch,3inch,4inch,6inch,8inch,10inch,12inch,16inch...1000mm.
Slot: 0.10, 0.15, 0.20, 0.25, 0.30...... 6.00mm
Support rod: can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire).
Styles of connection: by welding or by threaded male/female coupling.
Standard length: 2.9m or 5.8m to fit 20GP or 40HQ container
SIZE
(inch) | O.D
(mm) | SLOT
(inch) | LENGTH
(m) | Collapse
Strength
(psi) | Tensile
Weight
(ton) | Wire size
(mm) | RODS (mm) |
| 4 | 114.3 | 0.040 | 3 | 395 | 6 | 2.2*3.0 | 3.8mm/22 |
| 4 | 114.3 | 0.040 | 3 | 395 | 6 | 2.3*3.0 | 3.8mm/22 |
| 6 | 168.3 | 0.040 | 3 | 252 | 8 | 2.3*3.5 | 3.8mm/32 |
| 8 | 219.1 | 0.010 | 3 | 399 | 10.5 | 3.0*5.0 | 3.8mm/42 |
| 8 | 219.1 | 0.020 | 3 | 370 | 10.5 | 3.0*5.0 | 3.8mm/42 |
| 8 | 219.1 | 0.040 | 3 | 323 | 10.5 | 3.0*5.0 | 3.8mm/42 |
| 10 | 273.1 | 0.010 | 3 | 206 | 11 | 3.0*5.0 | 3.8mm/54 |
| 10 | 273.1 | 0.020 | 3 | 191 | 11 | 3.0*5.0 | 3.8mm/54 |
| 10 | 273.1 | 0.040 | 3 | 167 | 11 | 3.0*5.0 | 3.8mm/54 |
