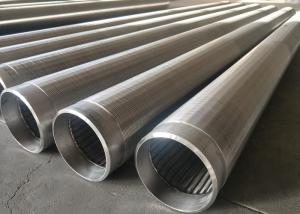

100 Bar 30 Slot Anti Aging Johnson Type Wire Screen Pipe Used In Oil Well
ISO9000 Approved Johnson Wire Screen Low Carbon Steel Galvanized Material
Johnson Wire Screen Description:
| Product Name | Johnson Wire Screen |
| Material | Stainless Steel |
| Grade | 304 |
| O.D | 219 mm |
| Size | 8-5/8" |
| Slot size | 1.0 mm |
| Length | 2.9 m |
| End connection | Welded rings |
| Wire size | 63 # |
| Support rod | ø4.0mm round wire |
| Wire shape | V shape |
Johnson Wire Screen Regular Specifications:
Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized
O.D.: 3, 4, 6, 8, 10, 12 inch and as request.
Slot: 0.1mm - 35mm
Discrepancy: + / - 0.05mm
Length: 300mm-6000mm
End Connection: welded rings or thread couplings ( male / female )
Specification of the wrap wire:1*2mm, 2*3mm, 2.2*3.5mm, 3*4.6mm and so on.
Specification of the rod:2.8mm, 3.0mm, 3.8mm, 4.0mm, 4.2mm, 4.5mm, 5.0mm and so on.
Special specification can be made according to your need.
Johnson Wire Screen Characteristic:
Well Screen.Johnson screen is manufactured with V-shaped profile wire which is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wires is fusion welded. The pitch of winding gives different spacing between two adjacent turns of wire. This spacing gives passage for water to enter. The entire process is completed on fully computerized machines.
Johnson Wire Screen Advantages:
Not easy to jam
the special V shaped wire, make the hole of screen outside face is smaller than inside, so the hole is not easy to jam.
Slot even
The CNC machine tools strictly control the gap between the wire, so that the gap is even.
Strong corrosion resistance
Stainless steel 304 have the high corrosion resistance
Johnson Wire Screen Industry:
Johnson Screens specific continuous-slot construction aims to optimize flow rates, minimize clogging and help develop the water-bearing geological formations faster. It is best applied in the following situations:
Geological formations comprised of small, fine particles
Water wells where gravel packs will be installed
Thin aquifers, where maximum open area is required
Large- and small-diameter deep wells
