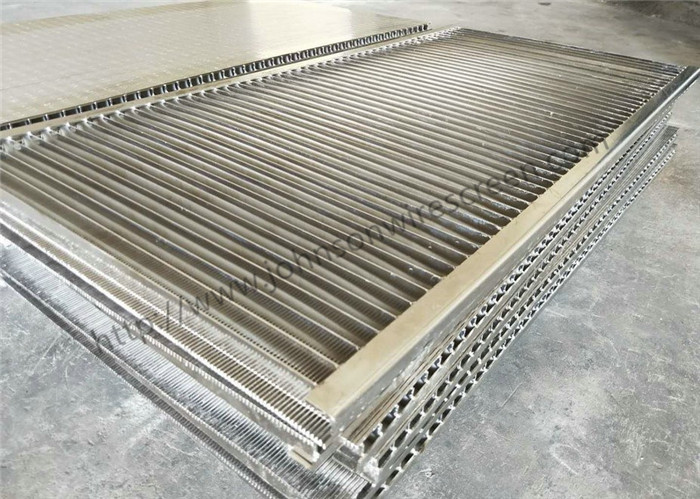

V Wire Johnson Wire Screen Panel Coal washer
Materials:SS 304, 304L, 316, 316L or carbon steel
Vee-wire profile wires range in widths from 0.020-inch (0.508mm) to 0.195-inch (4.953mm) and heights ranging from 0.040-inch (1.016mm) to 0.363-inch (9.220mm), other wire shapes also available

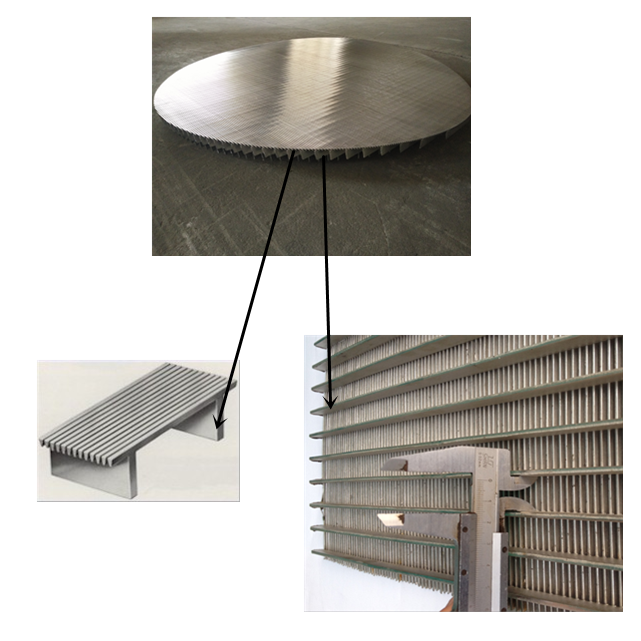

Support rods:
Johnson screens shape support rods range in width from 0.029-inch (0.737mm) to 0.151-inch (3.835mm) and the height ranging from 0.102-inch (2.591mm) to 0.120-inch (3.048mm)
Strip rods are available in widths from 0.070-inch (1.778mm) to 0.188-inch (4.775mm) and heights ranging from 0.375-inch (9.525mm) to 2.0-inch (50.8mm)
| Material | SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc |
| Length Range | Up to 3000mm |
| Width Range | Up to 3000mm |
| Slot Range | 20 micron to 3000 microns (Tolerance:+-5 micron) |
| Wedge Wire(Vee- wire) | 0.5x1.5 | 0.75x1.5 | 1x2 | 1.5x2.5 | 2x3 | 2x4 | 3x5 |
| Support Rod(Vee-wire) | 1.5x2.5 2x3 | 1.5x2.5 2x3 | 1.5*2.5 2x3 | 2x3 | 3*5 | 3x5 | 3x5 4*6 5*8 |
| Strip rods :1.778-4.775mm *9.525-50.8mm Round rods 3.17-12.7mm |
| Frame | No frame or ” L” type frame, ordinary frame, 5*10mm frame etc, according to your request. |
| Note | Customized according to the requirement |
Feature:
Geological formations comprised of small, fine particles
Water wells where gravel packs will be installed
Thin aquifers, where maximum open area is required
Large- and small-diameter deep wells
Application:
Architecture & Construction
Food & Beverage Screens
OEM Screen Components
Refining & Petrochemical
Waste Water Treatment
Water Well & Oil well
Coal & Mine
Chemical industry
Pharmacy
Food and beverage
Metallurgy
Coal mining
Environmental protectio
-------------------------------------------------------------------------------------------------------------------------------------------
Our factory Hengyuan hardware netting industry product co., Ltd located in Anping county, Hebei Province, China.
Our mainly products are :stainless steel vee sharped wire /wrap wire,Johnson screen ,water well screen/rod based wire wrapped screen,wedge wire screen pipe,reverse wedge wire screen,screen nozzle /water and gas strainer,sieve plate,slot mesh,ARC screen,header and hub laterals &hub radial laterals,pipe base ,crimped wire mesh/stainless steel wire mesh/perforated wire mesh etc.
