No Clogging Less Pressure Drop Wedge Wire Screen Pipe 0.02mm Slot

Name: No Clogging Less Pressure Drop Wedge Wire Screen Pipe 002mm Slot
Brand: Heng Yuan
Price: 1 USD

China No Clogging Less Pressure Drop Wedge Wire Screen Pipe 0.02mm Slot wholesale

Brand Name : Heng Yuan

Model Number : HY005

Certification : ISO,CIQ,CE, FORM E etc

Place of Origin : Hebei,China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000pcs/Month

Delivery Time : 7-10 work days,according to the quantity

Packaging Details : Moister-Barrier with each piece,64 pcs per 20 ft container

Product name : Johnson Type Wedge Wire Screen

Material : Stainless steel etc

Diameter : 29-1300mm

Length : uptp 6 meters

Slot size : 0.02-100 mm

End connection : Wleded rings,flange,threaded, closed

Wire : 1.5*2mm,2.2*3.5mm; 3*4.6mm

Support rod : 2*3mm, 3*4.6mm etc

Package : Woden box, Container

Shape : can be customized

Contact Now

Johnson Type Wedge Wire Screen–No-Clogging & Less Pressure Drop

Johnson Type Wedge Wire Screen Description:

Johnson Type Wedge Wire Screen is welded by winding support strip.

It has high strength, rigidity and bearing capacity, and can be made into a rigid screen filter device.

Johnson Type Wedge Wire Screen Pipe is customized for fecal extrusion dehydration, and is processed by fusion welding process for solid-liquid separator and wedge-shaped slit filter.

Johnson Type Wedge Wire Screen surface of the slit has the advantages of high screening efficiency, strong anti-seismic tensile capacity, low maintenance cost and long service life.

Johnson Type Wedge Wire Screen Specification:

Item	Johnson Type Wedge Wire Screen
Material	Stainless steel 304, 304L, 316L and 321 etc.
Profile Wire Width	1.0mm to 3.2mm
Profile Wire Height	2.0mm to 6.0mm
Support Rods Width	2.0 3.0mm
Support Rods Height	3.0mm to 7.0mm
Round	From 2.5mm to 6.0mm
Slot Size	0.1mm, 0.15mm, 0.25mm, 0.3mm ... 100mm etc
Pipe Length	Max 6 meters
Pipe diameter	29mm to 1200mm
Pipe Screen Ends	Plain Beveled ends, male/female threaded, flange or close up.
Usage	Sewage treatment and flood system: water source inlet, basement supply, carbon and resin retention, decentralization softening and ion exchange, sand, double and mixed media filtration, waste water sludge treatment;
Usage	Mineral processing, paper making and food processing: screening, coal drying, starch filtration, pulp and plant fiber filtration, beverage filtration;
Customized	Available

Johnson Type Wedge Wire Screen Application:

Livestock manure, slaughtering wastewater, distiller's grains, potato residue, wastewater from wood processing enterprises, solid-liquid separation of biogas residue, dehydration of traditional Chinese medicine residue, food industry materials, etc.

Johnson Type Wedge Wire Screen Feature & Advantage:

Precision and uniform slot spacing;
High open area;
Resist plugging and prevent sand from damaging pumps;
Minimum drawdown and less energy usage by a pump;
Minimum pressure drop.

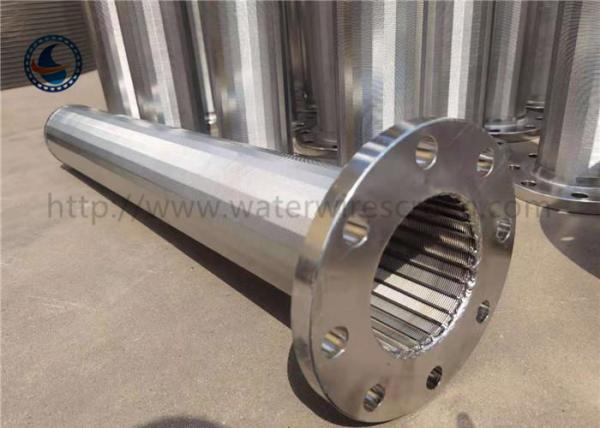

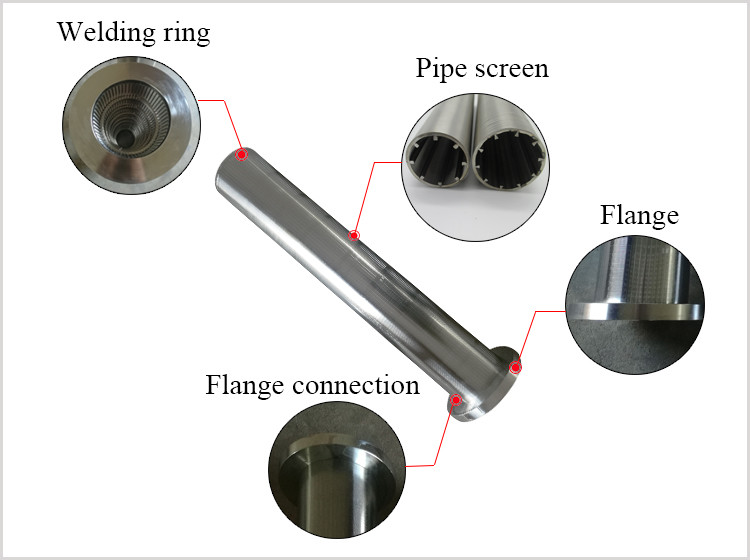

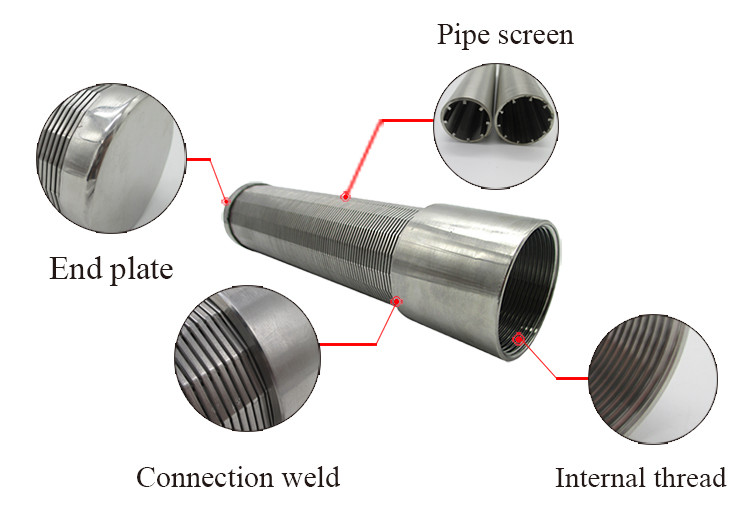

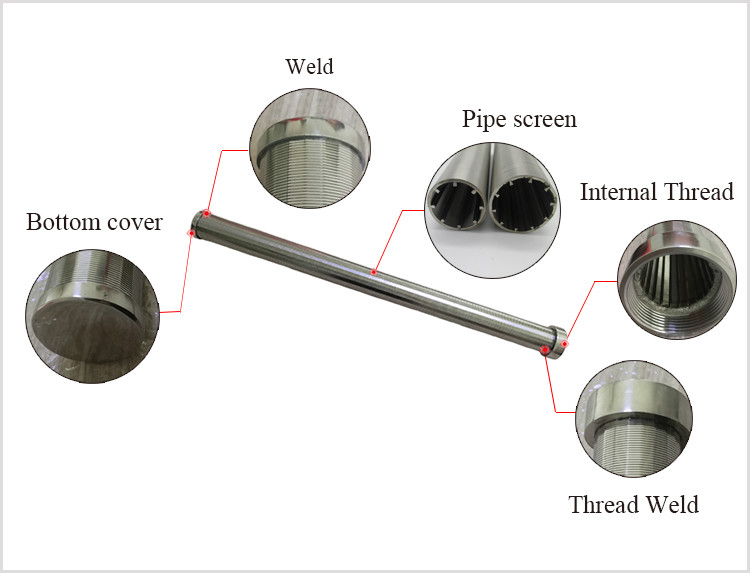

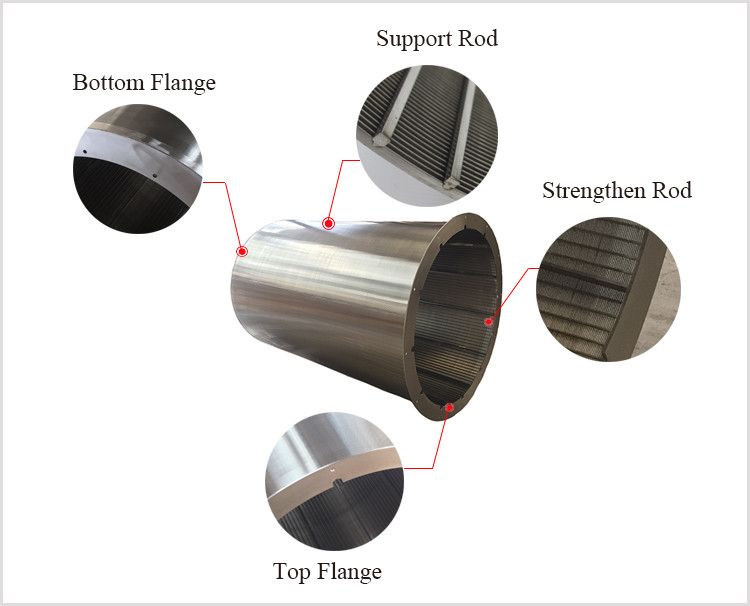

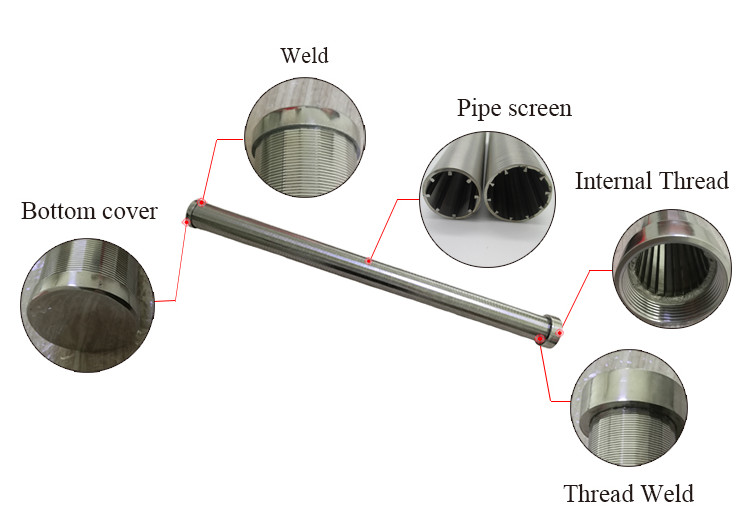

Johnson Type Wedge Wire Screen Pictures:
