Ss304 Support Bar Sieve Drum 0.1mm Slot Wedge Wire Screen Pipe

Product Categories

Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Ss304 Support Bar Sieve Drum 0.1mm Slot Wedge Wire Screen Pipe

Name: Ss304 Support Bar Sieve Drum 01mm Slot Wedge Wire Screen Pipe
Brand: Heng Yuan
Price: 1 USD

China Ss304 Support Bar Sieve Drum 0.1mm Slot Wedge Wire Screen Pipe wholesale

Brand Name : Heng Yuan

Model Number : HY072605

Certification : ISO,CIQ,CE, FORM E etc

Place of Origin : Hebei,China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000pcs/Month

Delivery Time : 7-10 work days,according to the quantity

Packaging Details : Moister-Barrier with each piece,64 pcs per 20 ft container

Name : Support Bar Sieve Drum (Filter Element) Filter Sieve Tube

Material : stainless steel 304 316L etc

Diameter : 25-1300mm

Slot size : 0.025, 0.1, 0.5, 1.0 1.5 2.0 mm etc

Wire : 2.2*3.5mm; 3*4.6mm

Support rod : 2*3mm etc

Length : up to 6 meter

Package : Woden box, Container

End connection : Threaded, closed, flange etc

Hole shape : v-shaped

Contact Now

SS Support Bar Sieve Drum (Filter Element) Filter Sieve Tube

SS Support Bar Sieve Drum (Filter Element) Filter Sieve Tube Description:

Product name: Support Bar Sieve Drum (Filter Element) Filter Sieve Tube,

It is also be named Solid-liquid separation wire winding screen

Support Bar Sieve Drum (Filter Element) Filter Sieve Tube Use

All kinds of stainless steel filter complete sets of equipment, filter, defroth, filter plate, filter piece and other complete sets of filter equipment accessories products.

According to the needs of users to design and produce a variety of specifications, at the same time can undertake processing.

Support Bar Sieve Drum (Filter Element) Filter Sieve Tube Specification:

Name	Support Bar Sieve Drum (Filter Element) Filter Sieve Tube
Material	Stainless steel 304, 304L, 316L and 321 etc.
Profile Wire	1.0 2.0 mm 1.52.0mm 1.52.5mm 23mm 2.33.5mm 2.24mm 2.24.5mm 34mm 3*4.6mm etc
Support Rods	23mm 34mm 34.6mm 35mm 36mm 47mm
Round	From 2.5mm to 6.0mm
Slot Size	0.025mm, 0.15mm, 0.25mm, 0.3mm ... 100mm etc
Pipe Length	Max 6 meter
Pipe diameter	25mm to 1300mm
Pipe Screen Ends	Plain Beveled ends, male/female threaded, flange or close up.

Support Bar Sieve Drum (Filter Element) Filter Sieve Tube Features:

It has the characteristics of strong structure, high temperature resistance, corrosion resistance, good mechanical properties, long service life, safety and reliability, etc. It can be used for filtration of various media.

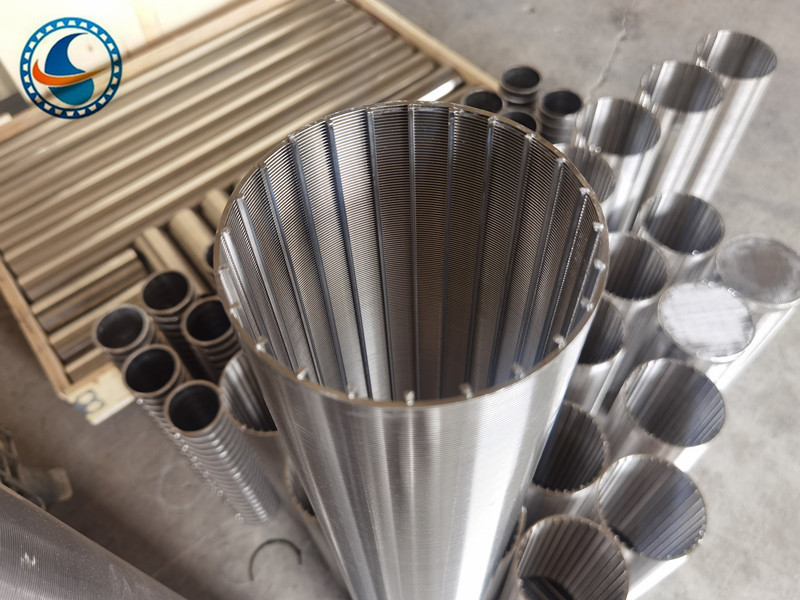

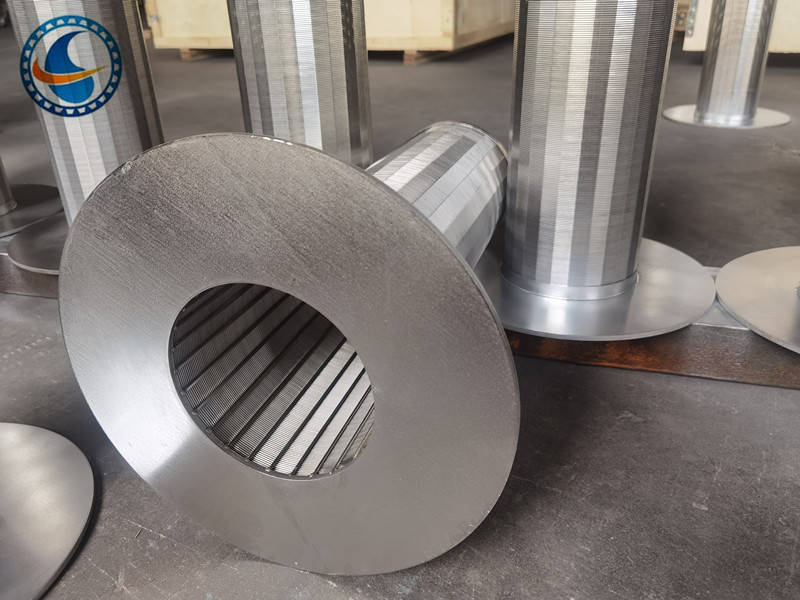

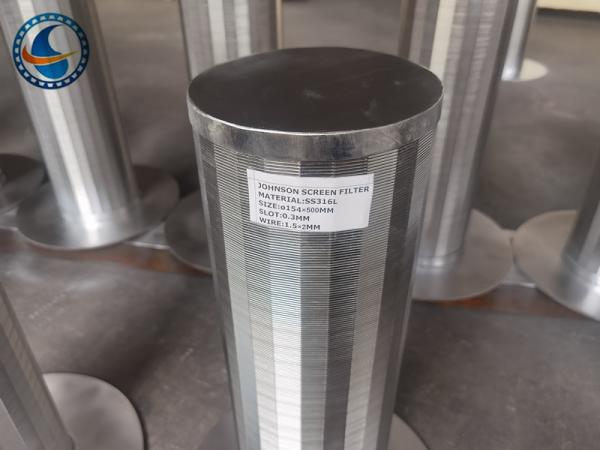

Support Bar Sieve Drum (Filter Element) Filter Sieve Tube Pictures:
