1.0mm Slot Wrapped Johnson Wedge Wire Screen Sieve Pump Sand Filter

Brand Name : HengYuan

Model Number : HY-0830

Certification : ISO,SGS,CIQ,CE

Place of Origin : Anping, Hebei, China

MOQ : 1 piece

Price : negotiated price

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1500 pcs / month

Delivery Time : according to the quantity

Packaging Details : wooden boxes , container

Name : Wedge Wire Wrapped Wire Sieve Pump Sand Filter

Material : Low carbon galvanized

Diameter : 8-5/8"

Length : 2900mm

Slot : 1.0mm

Wire size : 3*4.6mm Vee wire

Support rod : ø3.8mm

Technique : Full welded

Features : Non-clogging

Application : In water well for sand control

Package : Container

Surface : Galvanized

Contact Now

Low Carbon Galvanized Wedge Wire (V wire, Trapezoidal Wire) Wrapped Wire Sieve Pump Sand Filter

Introduction of Wedge wire wrapped wire sieve pump sand filter:

Wedge wire wrapped wire sieve pump sand filter is welded by winding strip winding bracket, it has high strength, stiffness and bearing capacity, can be made into a variety of shapes of rigid screening filter device. This product is processed by fusion welding process, seam screen surface has the advantages of high screening efficiency, low maintenance requirements, long service life.

Features of wedge wire wrapped wire sieve pump sand filter:

1. The application of trapezoidal wire, so that a V-shaped opening is formed between the gaps of the screen tube.

2. The trapezoidal wire continuous winding forms a continuous high-density uniform gap on the supporting wire arranged in a circular manner.

3. The winding wire and all supporting wires are connected by electric welding, durable, long working life cycle.

4. According to the actual needs of the design of the support wire longitudinal arrangement and screen tube continuity gap form, so that the screen high compressive performance.

5. The advantages of wire screen filter improve the efficiency and life cycle of Wells.


Low Carbon Galvanized Wedge Wire Wrapped Wire Sieve Pump Sand Filter Normal Sizes:

Name: Johnson screen,Water wire screen,Water well screen, Wire warp screen,Wedge wire screen,

Screen tube,Slotted tube,Wound screen,Continuous slot screen filter,Sand control screen,

Wedge wire screen pipe, Rotary filter drum,Oil screen.

Material: Stainless steel 304,316L,Non-magnetic Stainless steel, Low carbon galvanized,904L,
Duplex steel etc.
Diameter: From 29-1300mm (Normal diameter is in the below table)
Slot: From 0.1-100mm (Normal slot 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, Pls refer to below table)
Length: From 100-6000mm (Normal length is 2.9m and 5.8m, to fit container)
Wrap wire:2*3.5mm,2.2*3.5mm,2.2*4.5mm,3*4.6mm,3*5mm,3*6mm,3*6.5mm,3*7mm etc.
Support rod:ø3.0-ø6.0mm round wire, Also can be Vee-shaped wire.
Ends:Welded rings/Plain beveled ends,Male/female threaded,Flange etc.

Use:Water Well,Waste Water Treatment,Water supply systems,Coal & Mine,
Food Processors & Beverage Screens,Environmental protection,Refining & Petrochemical,
Architecture & Construction etc.

Sizes

(inch)

OD

(mm)

Slot

(mm)

Length

(m)

Tenslie

Strength

 Collapse Strength

Wrap wire

Vee-shaped wire(mm)

Support rod

Round wire(mm)
3-1/2 88.9 1.0 2.9 ＞22 10.2 2.2*3.5 (Width*height) ø3.8MM×22
4-1/2 114.3 1.0 2.9 ＞28 11.5 2.2*3.5(Width*height) ø3.8MM×22
6-5/8 168.3 0.75 5.8 ＞40 12.8 2.2*3.5(Width*height) ø3.8MM×32
6-5/8 168.3 1.0 5.8 ＞33 12.8 2.2*3.5(Width*height) ø3.8MM×32
6-5/8 168.3 0.63 5.8 ＞83 45 3.2*6.0(Width*height) ø6.0MM×32
8-5/8 219.1 1.0 5.8 ＞34 21.9 2.3*3.5(Width*height) ø3.8MM×48
8-5/8 219.1 1.0 5.8 ＞50 38.2 3.0*5.0(Width*height) ø4.0MM×48
8-5/8 219.1 1.0 5.8 ＞60 46 3.2*6.0(Width*height) ø5.0MM×48
10-3/4 273.1 0.75 5.8 ＞50 32.9 2.2*3.5(Width*height) ø4.0MM×55
10-3/4 273.1 1.0 5.8 ＞60 39.5 3.0*4.6(Width*height) ø4.8MM×55
10-3/4 273.1 1.0 5.8 ＞100 48 3.2*6.0(Width*height) ø5.0MM×55
12-3/4 323.9 1.0 5.8 ＞120 37.2 3.0*5.0(Width*height) ø4.0MM×56
14 355.6 1.0 2.9 ＞80 37.8 3.0*5.0(Width*height) ø4.0MM×59
16 426 1.0 2.9 ＞80 37.5 3.0*5.0(Width*height) ø4.0MM×54

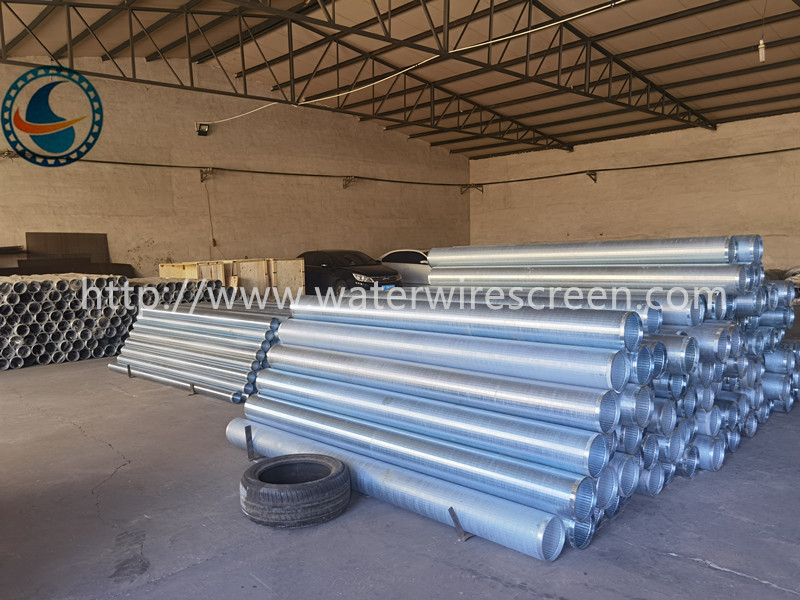

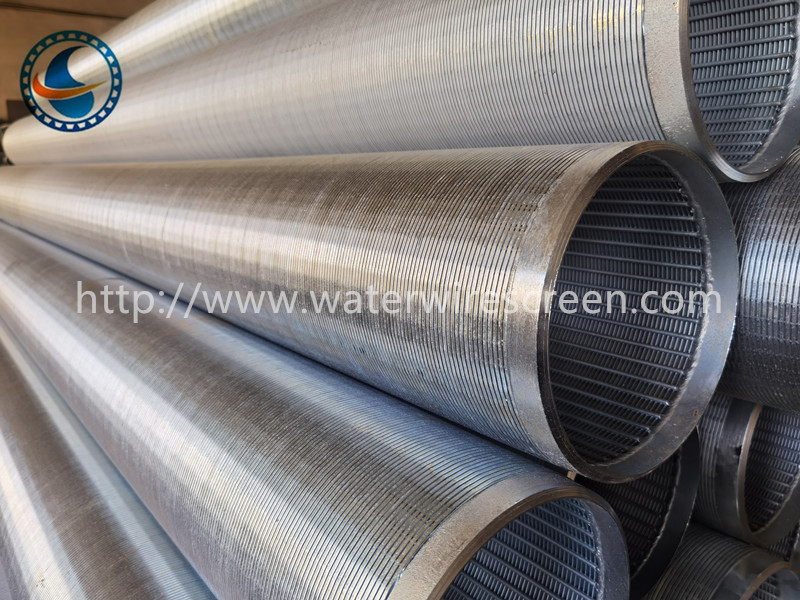

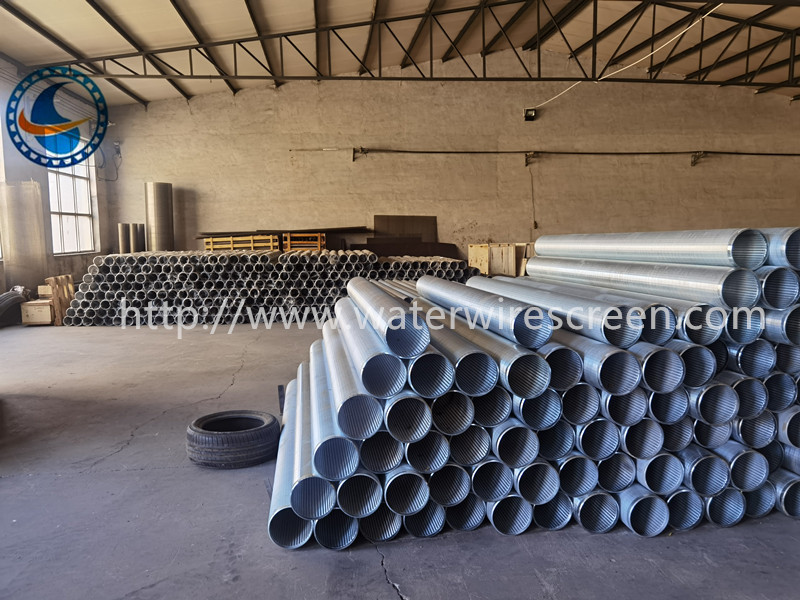

Low Carbon Galvanized Wedge Wire Wrapped Wire Sieve Pump Sand Filter Pictures:

1.0mm Slot Wrapped Johnson Wedge Wire Screen Sieve Pump Sand Filter1.0mm Slot Wrapped Johnson Wedge Wire Screen Sieve Pump Sand Filter1.0mm Slot Wrapped Johnson Wedge Wire Screen Sieve Pump Sand Filter
