Water Well Sand Control Filter Screen
All-welded wire-wound screens can be widely used in oil, gas, and water wells for sand prevention, and are particularly important in chemical, environmental protection and other industries. It is one of the most widely used filter screens used in various oil and water recycling and resin collection links. The Johnson T-shaped wire-wound screen in our factory adopts the current leading full-wound welding production process, and uses special trapezoidal (wedge-shaped) wire windings to be welded on a set of longitudinal support rods arranged in a circular manner.
Due to the use of full-process welding, not only the strict continuous integrity of the product is ensured, but also the ideal gap size is formed. Compared with the welding process commonly used in China, the water filter pipes, water caps, water distributors, resin traps and sieve plates we produce have smooth pipe surfaces, no production edges, no burrs, and uniform gaps and no grease leakage. Features. Each production link is produced by professional production personnel using advanced and sophisticated professional equipment.
Regular Specification:
| SIZE (INCH) | O.D (MM) | SLOT (MM) | LENGTH (M) | COLLAPSE STRENGTH (BAR) | TENSILE WEIGHT (TON) | WRAP WIRE(WIDTH*HEIGHT) (MM) | RODS (MM) |
| 3-1/2 | 88.9 | 1.0 | 3 | ＞22 | 10.2 | 2.3*3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 3 | ＞28 | 11.5 | 2.3*3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0 | 6.0MM*32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0 | 4.0MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0 | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.3*3.5 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*5.0 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0 | 5.0MM/55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0 | 4.0MM/50 |
| 14 | 355.6 | 1.0 | 3 | ＞80 | 37.8 | 3.0*5.0 | 4.0MM/59
|
Characteristic:
1. Easy to leak, wear and corrosion resistance.
2. The cross section of the mesh is trapezoidal. The gap is narrow at the top and wide at the bottom.
3. It is a screen bar made of cold-rolled stainless steel wire. The support bar is welded by automatic mine screen production equipment. The screen seam is uniform, the welding quality is stable, the opening rate is high, the service life is long, and the strength is high. Rigidity and bearing capacity can be made into rigid screening and filtering devices of various shapes.
OEM service:
We can produce products according to the needs of our customers.
Material: stainless steel 304, 316L, low carbon steel
Diameter: minimum diameter 32mm, maximum diameter 1270mm
Length: single tube can be up to 6 meters in length
Gap: 0.25mm, 0.5mm, 0.7mm, 1.0mm, 1.5mm is a regular gap. We can produce gaps of 0.1-50mm
Joints: Generally, there are joints at both ends of the pipe, such as flanges, weld rings, or threads, so that the pipes can be connected to meet the needs of use.

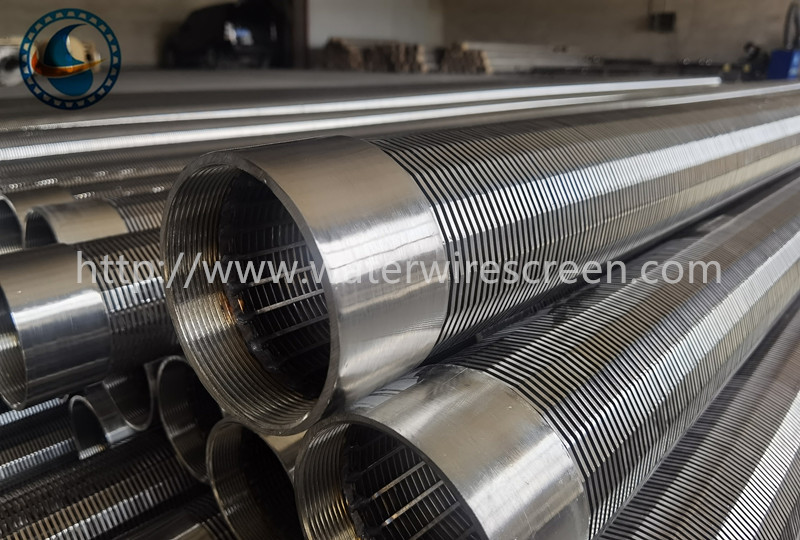

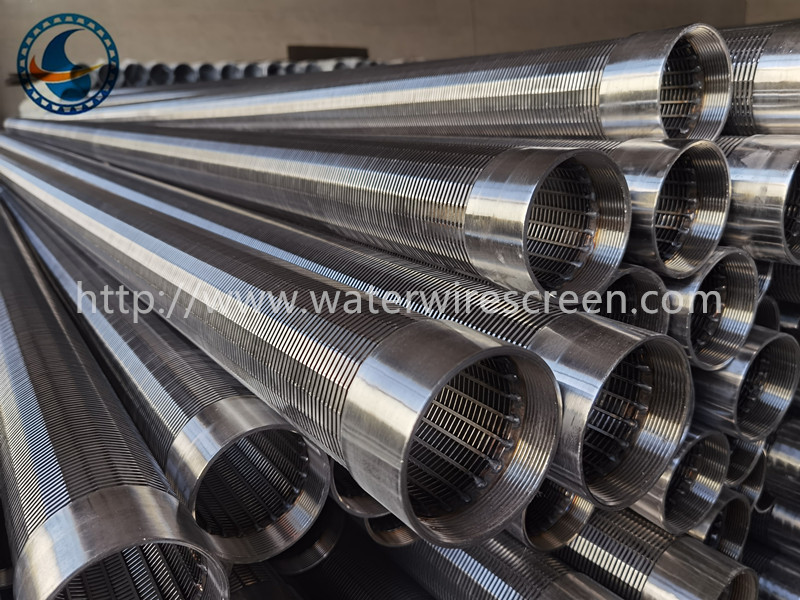

Pictures:
