8" Non-Magnetic Johnson Water Well Screen For Sand Control
Johnson Water Well Screen Introduce:
Johnson Water Well Screens are received by simultaneously winding a spiral of profiled working wire and welding them to support wires, which are arranged along the axis of the cylindrical construction.
This technology allows to provide welded profile wire screens for applications where high precision of the screen together with high strength is required.
Material: mainly stainless steel, Non-magnetic stainless steel, Low carbon galvanized,or other materials required by customers.
Application environment: it is suitable for gravel filling sand control in most Wells such as vertical Wells, inclined Wells and directional Wells.
Connection type: Bevel welded rings or male/female threaded connection.
Use: For water well yield, not easy to sand, well and mining comprehensive cost bottom.
Johnson Water Well Screen Features:
Full-welding Johnson water well screen is made of triangle (Vee-shaped) stainless steel wire (or carbon steel wire cross welding, high welding strength, good filtration effect, not easy to plug is chemical, mining, petroleum, paper making, water Wells, water treatment equipment, sugar, wine and other industries of filtration equipment.
Johnson Water Well Screen Regular Specification:
| SIZE (INCH) | O.D (MM) | SLOT (MM) | LENGTH (M) | COLLAPSE STRENGTH (BAR) | TENSILE WEIGHT (TON) | WRAP WIRE(WIDTH*HEIGHT) (MM) | RODS (MM) |
| 3-1/2 | 88.9 | 1.0 | 3 | ＞22 | 10.2 | 2.3*3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 3 | ＞28 | 11.5 | 2.3*3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0 | 6.0MM*32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0 | 4.0MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0 | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.3*3.5 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*5.0 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0 | 5.0MM/55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0 | 4.0MM/50 |
| 14 | 355.6 | 1.0 | 3 | ＞80 | 37.8 | 3.0*5.0 | 4.0MM/59 |
Except for these regular specification, we can also make any other sizes as clients request.

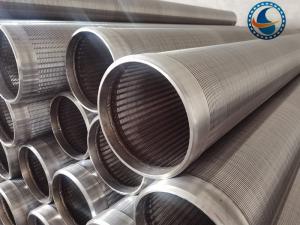

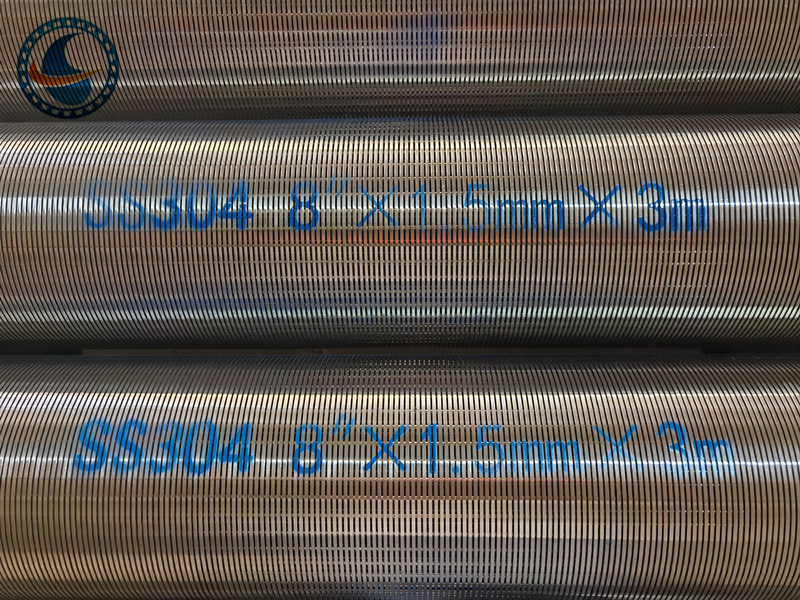

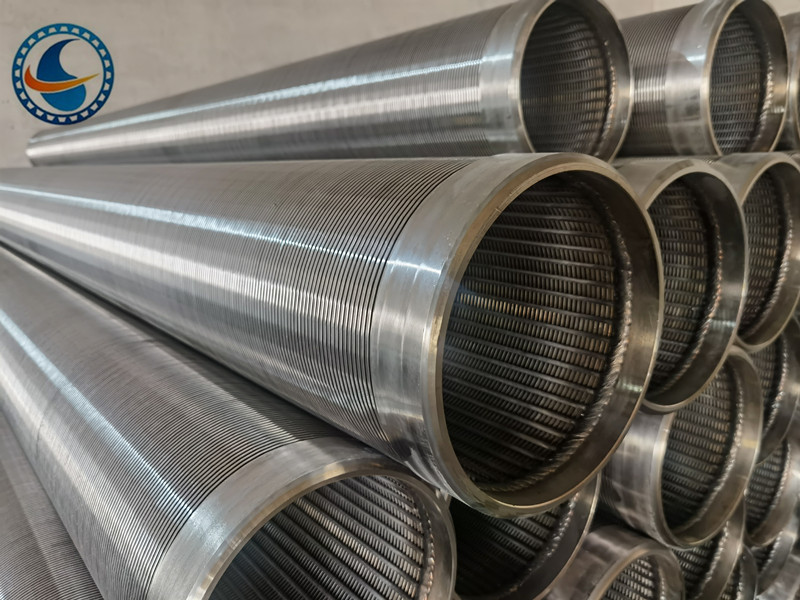

Johnson Water Well Screen Pictures:
