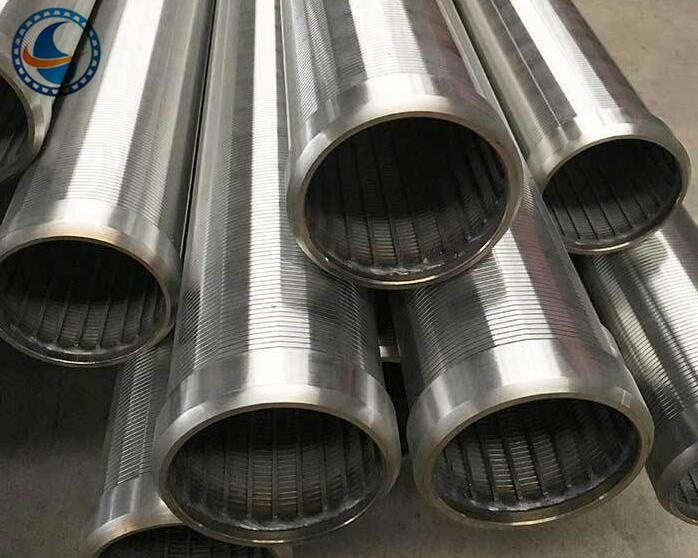

Stainless Steel 304 Drilling Well 6-5/8" Johnson Well Screen Pipe
Johnson Well Screen Pipe Introduction:
Hengyuan Johnson Well Screen Pipe also be named Water well screen,Johnson screen,Wedge wire screen,Vee-Wire screen pipe,Rod based continuous slot Vee-wire screen tube,Wound screen,Water filter, Screen cylinders, slot wire screen tube , well screen , strainer screens,oil screen tube etc

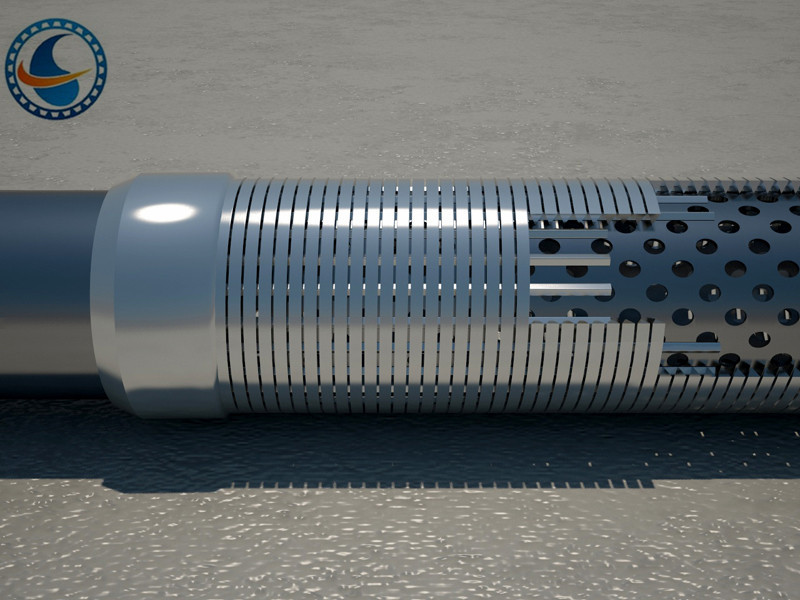

Johnson Well Screen Pipe is made up of Vee-shaped wrapped wire and round rod in each intersection welded together.

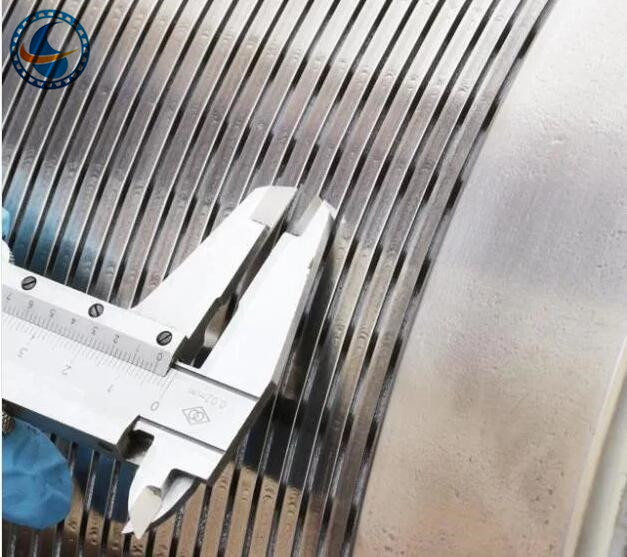

Accurate slot and high filtration precision.
Johnson Well Screen Pipe Normal Sizes:
| Outside Diameter (mm) | Length (mm) | Slot (mm) | End connection |
| 2", 3", 4", 5", 6",8", 9", 10", 12", 14", 16" | 2900,5800 in usual | 0.5, 0.63, 0.75,1.0 | Welded rings, male/female threaded coupling,flange,closed up etc. |
| Explanation | Besides above of the specification screen pipe, we also can act according to the customer’s request the manufacture diameter from ￠ 29mm- ￠ 1300mm, the length from the 100mm-6000mm series screen pipe |
Johnson Water Well Sand Control Screen Tube Advantages:
1.A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.
2.A V shaped profile wire which avoids clogging and ensures an uninterrupted flow.
3.A uniform and efficient well development due to the continuous slot opening.
4.Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
5.Ladder-like wire welded screens have the features of easy back washing, last long, safety and reliability as well as low comprehensive cost.
