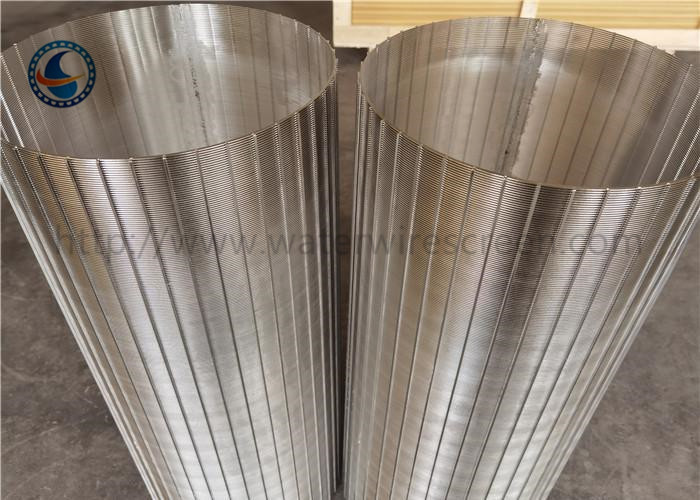

Wedge Wire Screen Slotted Filter Tube Johnson Screen Filter for Filtration
Description:
Wedge wire screen is made of V-shape profile wire and longitudinal support rods,make the adjacent wire forming has a fixed value slot tubular body. Each intersecting point of these wires is fusion welded which makes it has sturdy construction and good mechanical property.
The profile wire and support rod can be axial wire or radial wire. It mainly includes internal filtration, external direction
filtration. According to the different usage, we can design the flow direction and shape to meet the application requirements.
What's more, we can customized the wedge wire filter element such as filter tube, filter basket based on the clients requirements
Specifications:
| Material | stainless steel 304, 304L, 316, 316L, 321, etc. |
| Tube diameter | 25 mm - 1500 mm |
| Tube length | 0.3 m, 0.6 m, 1 m, 2 m, 3 m, 6 m and 12 m. Special sizes can be customized |
| Slot size | 0.05 mm - 2.5 mm |
| Surface profile type | triangle wire |
| Support profile | triangle wire, round wire, flat bar or wedge wire |
The characteristics of:
Reverse V Slot Wedge Wire Drum Screen is widely used in oil, gas and water wells for sand prevention and its application in chemical industry, environmental protection and other industries.
It is the most widely used filter screen in all kinds of oil, water resources recycling and resin collection.
The world's most advanced full wound welding process in the world is adopted by the Johnson Vee-shaped wire winding screen.
The special stainless steel trapezoid (wedge-shaped) wire winding is welded on a group of longitudinal support rods arranged in a round round arrangement, thus ensuring its strength and service life.
Due to the adoption of full program welding, not only the strict integrity of the product is ensured, but also the ideal gap size is formed. Compared with the commonly used welding technology in China, the full welded wedged wire winding screen tube, filter pipe, water cap, water distributor, resin trap and sieve plate have the characteristics of smooth tube surface, no production edge angle, no burr, uniform gap and no grease leakage.
Type:
From inside to outside. Wire, Inside; Support rod, Outside.
1. Wire is the length of the screen pipe;
2. Support rod is the length of the screen pipe.
The cross-section of the screen strip is trapezoidal, the slots at lower part is wider than that of upper part of the screen.
