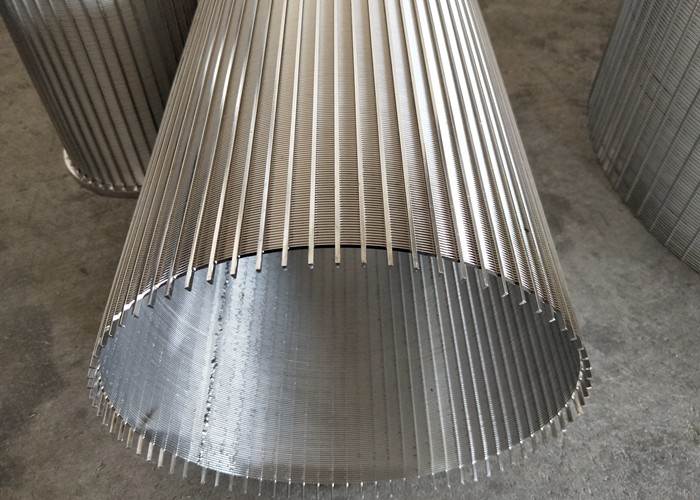

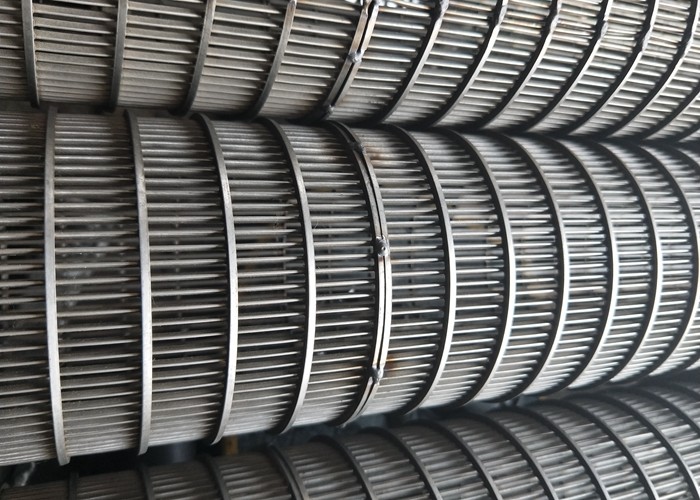

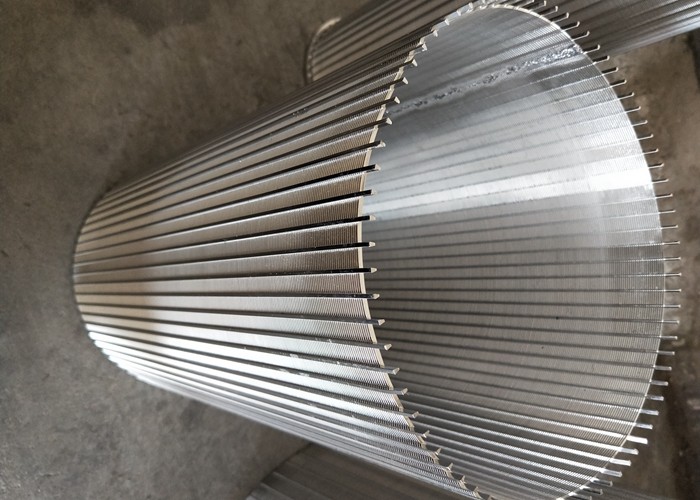

Stainless steel Johnson V-wire screen water well tube filter for water treatment
Description:
Wedge wire tubes are made during simultaneous winding of specially profiled working wires on a spiral and welding them to carrying wires placed along the tube. This technology allows the production of wedge wire screens when very high gap precision and screen resistance are required. Due to using the newest welding technology we can obtain various distances between carrying wires, very accurate and repeatable gap and therefore produce screens according to customer's particular requirements.
Characteristics
Wedge wire mesh is made of SS "V"shaped and SS "V"shaped, SS "V"shaped and SS rod ,or SS "V"shaped and SS "CONVEX "shaped rod with an unique welding process, with unique characteristics:
1.Precise openings
2.Drain quickly,high filteration
3.Perfectly flat and smooth surface
4.Maximum design flexibility
5.Stronger and more durable, economical
6.Easier installation and long using time,etc.
Application
Wedge wire screen is widely used in mining, coal, petroleum, fertilizer, grain, salt industry, environment protection, etc. Sieving liquid, powder and other materials. Petroleum, chemical industry, metallurgy, mining, pharmaceutical purification, drilling liquid purification and other industries use.
Features
1. It has high mechanical strength, can bear large pressure drop.
2. It has equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.

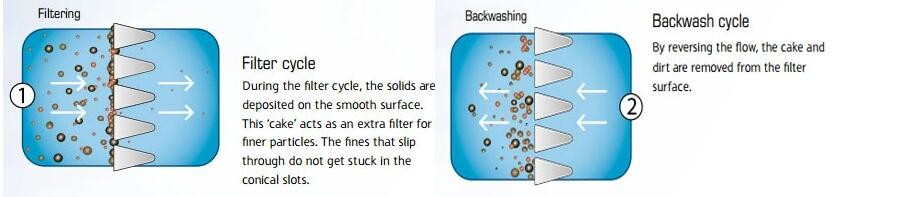

3. The wedge type slot can improve backflushing and regeneration performance.
4. It has resistance to pressure, temperature, aging, corrosion, can be applied for different kinds of fluid.
Features
1. It has high mechanical strength, can bear large pressure drop.
2. It has equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.
3. The wedge type slot can improve backflushing and regeneration performance.
4. It has resistance to pressure, temperature, aging, corrosion, can be applied for different kinds of fluid.
Winding characteristics:
1. The application of trapezoidal wire forms a V-shaped opening between the Schroder screen gaps. This design form works more efficiently than other forms of products, ensuring the smoothness of water filtration.
2. The continuous winding of the trapezoidal wire forms a continuous high-density uniform gap on the supporting wires arranged in a circular pattern, which ensures the opening area and non-blocking of the Schroeder screen, and avoids the high-density accumulation of sediments. Productivity and extended filter life are guaranteed.
3. The winding wire and all supporting wires are connected by electric welding, which is durable and has a longer working life cycle.
4. The longitudinal arrangement of the support wires and the continuous slot form of the screen are designed according to the actual needs, so that the product has higher compressive performance.
Services
1. Various samples can be provide.
2. The FOB,CIF, CFR price are all available.
3. If there are unqualified products, support for replacement.
4. The package detail, mesh size can be customized.

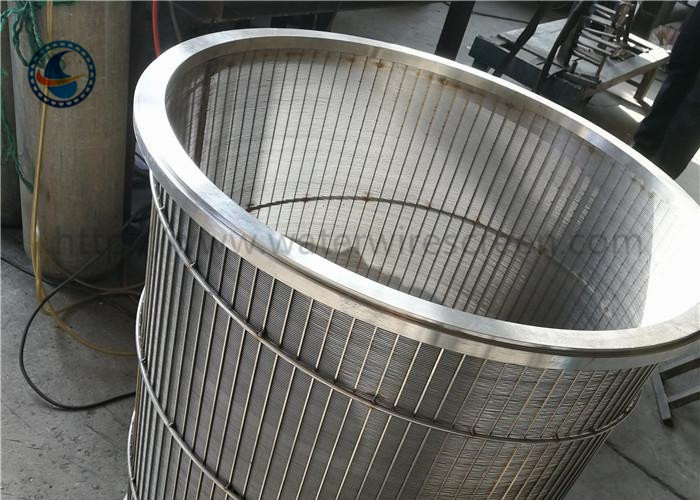

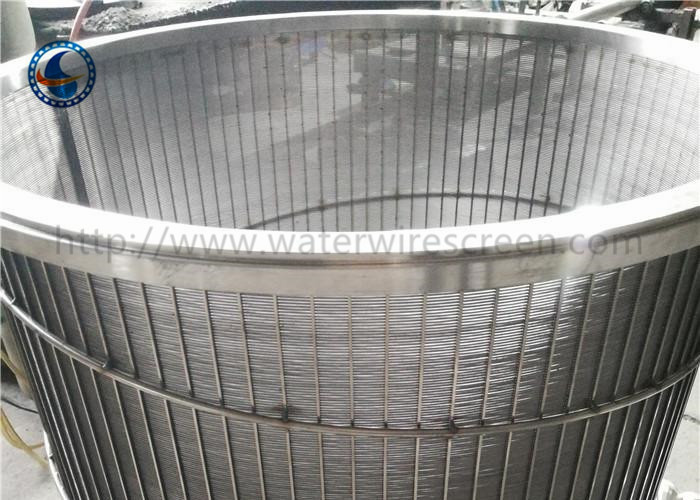

Reverse V Slot Wedge Wire Drum Screen Basic Parameters :
| Material | SS304, SS304L, SS316L, SS321, Duplex, Hastelloy, etc |
| Length | Up to 4000mm |
| Inner Diameter | 60-1300mm |
| Slot / Gap | 25 micron to 2000 micron (Tolerance:+-5 micron) |
| Wedge Wire(mm) | 1x2 | 1.2x2 | 1.5x2 | 2x3 | 2x3.5 | 3x4.6 | 3x5 |
| Support Rod (mm) | 2x3 | 2x3 | 2x3 | 2x3 | 3*4.6 3*5 3*6 | 3x4.6 3x5 3x6 | 3x5 3x6 |
| Ends | With Welded rings, Flange etc |
| Filter Type | From inside to outside |
| Reinforce | With or without |
| Note | All sizes are all customized, according to your requirement |
