Duplex Steel 2205 Wedge Wire Screen Panels Huge Clogging Resistance Welded

Name: Duplex Steel 2205 Wedge Wire Screen Panels Huge Clogging Resistance Welded
Brand: Heng Yuan
Price: 1 USD

China Duplex Steel 2205 Wedge Wire Screen Panels Huge Clogging Resistance Welded wholesale

Brand Name : Heng Yuan

Model Number : HY080505

Certification : ISO9000

Place of Origin : Hengshui City,Hebei,China

MOQ : 1pcs

Price : Negotiation

Payment Terms : L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000pcs/Month

Delivery Time : 5 days,according to the quantity

Packaging Details : Wooden boxes

Name : Welded Wedge Wire Sieve Plate

Material : Duplex steel 2205

Wire size : 1.5*2mm Vee wire

Support rod : 2*3mm

Size : 2000*2000mm

Slot : 0.5mm

Type : Flat screen

Opea area : 25%

Width : Customize Size

Length : Customize Length

Application : mining,oil,fertilizer

Feature : Non-clogging,corrosion resistance

Business type : Manufacturer

Oem : YES

Contact Now

Huge Clogging Resistance Welded Wedge Wire Sieve Plate

WELDED WEDGE WIRE IS A WELDED STEEL STRUCTURE USED MAINLY FOR FILTRATION, SEPARATION AND RETENTION

Welded Wedge wire consists of surface profiles, usually V-triangular shape, tig welded onto support profiles. The Vee wire is used to construct a welded wedge wire screen, this is both robust and extremely accurate. Normally manufactured from stainless steel, wedge wire comes in many forms, these include flat panels, curved panels, segments and sections. They form floors i.e. for breweries, discs and drums for filtration, in the food washing, food processing and sugar industries. Welded wedge wire is used for many different types of filtration, solid-liquid separation, classification, coal, dewatering, and concentration, regardless of location or industry.

Welded Wedge Wire Sieve Plate Common Sizes:

Name:	Welded Wedge Wire Sieve Plate, Johnson flat screen, Wedge wire screen panel.
Material:	Stainless steel 201,304,316L,904L,Duplex steel 2205,2507, C276 etc.
Max Size:	4000×4000 mm
Slot:	From 0.025-100mm
Profile wire type:	Vee wire/ Triangle wire
Support rod type:	Vee wire/ Triangle wire; Round wire; Rectangular wire.
Profile wire:	1×2mm,1.2×2mm,1.2×2.3mm,1.5×2mm,1.5×2.5mm, 2×3mm,2×3.5mm,2.2×3.5mm,3×4.6mm etc.
Support rod:	Vee wire:2×3mm,3×4.6mm Vee shaped; Alao can be round wire, ø3.0-ø6.0mm
	Round wire: ø2.5-6.0mm
	Rectangular wire: 2×10mm; 2×12mm; 2×15mm; 2×20mm; 2×30mm; 3×20mm; 3×30mm.
Frame:	With or without frame

We were pioneers in the development of wedge wire screens. In recent years a demand has grown for wedge wire assembled by welding, in contrast to the looped method.

All sizes can be customized.

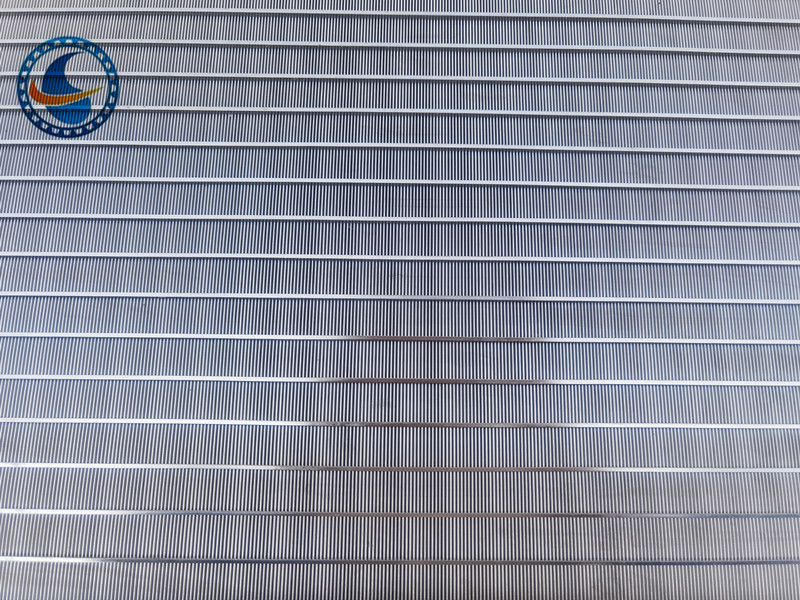

Welded Wedge Wire Sieve Plate Pcture:

Duplex Steel 2205 Wedge Wire Screen Panels Huge Clogging Resistance Welded
