Vee Shaped Rotary Drum Wedge Wire Screen Pipe 904l Cylindrical

Name: Vee Shaped Rotary Drum Wedge Wire Screen Pipe 904l Cylindrical
Brand: Hengyuan
Price: 30 USD

China Vee Shaped Rotary Drum Wedge Wire Screen Pipe 904l Cylindrical wholesale

Brand Name : Hengyuan

Model Number : HY102501

Certification : ISO, SGS, CIQ,,CCPIT,CO,FORM E

Place of Origin : Hengshui City,Hebei Province

MOQ : 1 Pieces

Price : USD 30-100 per Meter

Payment Terms : D/A, D/P, L/C, T/T, Western Union, MoneyGram

Supply Ability : 1500 Meters Per Week

Delivery Time : 7-15 work days

Packaging Details : Plastic film

Name : Rotary Drum Wire Screen

Material : Stainless Steel 304

ID : 450mm

Length : 980mm

Slot size : 0.8mm

Wrap wire : Sb34 (2.8*5mm)

Support rod : Q35 (3*5mm)

Ends : open ends

Usage : FIlter/back wash

Filter type : From inside to outside

Contact Now

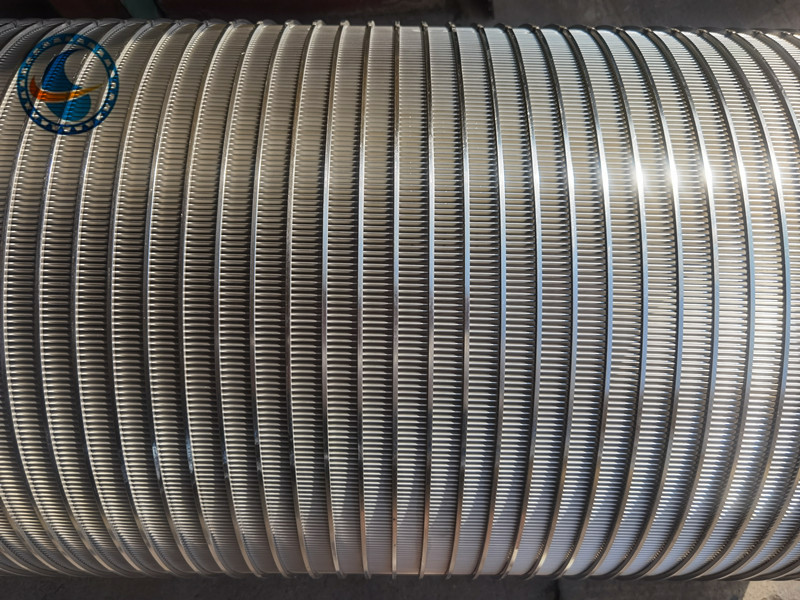

Staniless 304 Sb34 Vee Shaped Wire Rotary Drum Wire Screen

Rotary drum wire screen, also called wedge wire cylinder, is a type of cylindrical "V" shape wedge wire screen, which is made of stainless steel V shaped wires and support rods. As the wedge wire rotary drum screen is working under high pressure when separation and filtration, so there is reinforced rods on the structure.

The end of rotary drum wire screen is welded flanges or welded rings for easy installation.

The slot sizes and structures may varies according to different materials and working conditions.

Rotary Drum Wire Screen Information:

Name: Wedge Wire Screen,Johnson screen,Water wire screen,Water well screen, Wire warp screen,Screen tube,Slotted tube,Wound screen,Continuous slot screen filter,Wedge wire screen pipe, Rotary filter drum.

Material: Stainless steel 201,304,316L,904L,Duplex steel 2205,2507, C276 etc.

Diameter: From 25-1300mm

Slot: From 0.025-100mm

Length: From 100-6000mm

Wrap wire:1×2mm,1.2×2mm,1.2×2.3mm,1.5×2mm,1.5×2.5mm,2×3mm,2×3.5mm,2.2×3.5mm,3×4.6mm etc.

Support rod:2×3mm,3×4.6mm Vee shaped; Alao can be round wire, ø3.0-ø6.0mm

Ends:Welded rings/Plain beveled ends,Male/female threaded,Flange ,Closed up etc.

Use:Water Well,Waste Water Treatment,Water supply systems,Coal & Mine,Food Processors & Beverage Screens,Environmental protection,Refining & Petrochemical,Architecture & Construction etc.

Rotary Drum Wire Screen Type:

Filter from inside to outside
1. The inner wire is wound and the slot is circumferential, and the outer support bar is vertical
2. The inner winding and the slit are vertical, and the outer support bar is circumferential

Rotary Drum Wire Screen Application:

Architecture & Construction

Food & Beverage Screens

OEM Screen Components

Refining & Petrochemical

Waste Water Treatment

Water Well & Oil well

Coal & Mine

Chemical industry

Pharmacy

Food and beverage

Metallurgy

Coal mining

Environmental protectio
