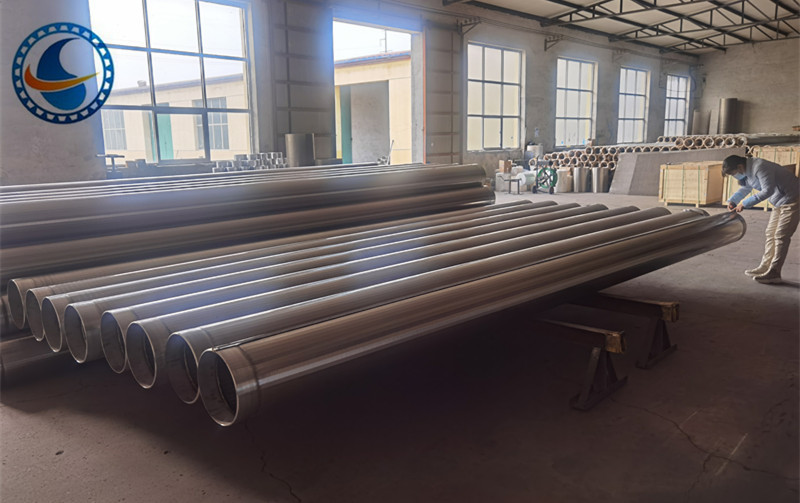

Non Magnetic Stainless Steel Johnson Well Screen 273mm 0.25mm Slot Opening

Name: Johnson well screen,Water wire screen, Johnson screens,Wire warp screen,Wedge wire screen,Screen tube,Slotted tube,Wound screen,Continuous slot screen filter,Sand control screen,Oil screen.

Material: Stainless steel 304,316L,Non-magnetic Stainless steel, Low carbon galvanized,904L,Duplex steel etc.

Diameter: From 29-1300mm (Normal diameter is in the below table)

Slot: From 0.1-100mm (Normal slot 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, Pls refer to below table)

Length: From 100-6000mm (Normal length is 2.9m and 5.8m, to fit container)

Wrap wire:2*3.5mm,2.2*3.5mm,2.2*4.5mm,3*4.6mm,3*5mm,3*6mm,3*6.5mm,3.2*6mm,4*7mm etc.

Support rod:ø3.0-ø6.0mm round wire, Also can be Vee-shaped wire.

Ends:Welded rings/Plain beveled ends,Male/female threaded,Flange etc.

Use:Water Well,Waste Water Treatment,Water supply systems,Coal & Mine,Food Processors & Beverage Screens,Environmental protection,Refining & Petrochemical,Architecture & Construction etc.

Sizes

(inch)

OD

(mm)

Slot

(mm)

Length

(m)

Tenslie

Strength

Collapse Strength

Wrap wire

Vee-shaped wire(mm)

Support rod

Round wire(mm)

3-1/2

88.9

1.0

2.9

＞22

10.2

2.2*3.5 (Width*height)

ø3.8MM×22

4-1/2

114.3

1.0

2.9

＞28

11.5

2.2*3.5(Width*height)

ø3.8MM×22

6-5/8

168.3

0.75

5.8

＞40

12.8

2.2*3.5(Width*height)

ø3.8MM×32

6-5/8

168.3

1.0

5.8

＞33

12.8

2.2*3.5(Width*height)

ø3.8MM×32

6-5/8

168.3

0.63

5.8

＞83

45

3.2*6.0(Width*height)

ø6.0MM×32

8-5/8

219.1

1.0

5.8

＞34

21.9

2.3*3.5(Width*height)

ø3.8MM×48

8-5/8

219.1

1.0

5.8

＞50

38.2

3.0*5.0(Width*height)

ø4.0MM×48

8-5/8

219.1

1.0

5.8

＞60

46

3.2*6.0(Width*height)

ø5.0MM×48

10-3/4

273.1

0.75

5.8

＞50

32.9

2.2*3.5(Width*height)

ø4.0MM×55

10-3/4

273.1

1.0

5.8

＞60

39.5

3.0*4.6(Width*height)

ø4.8MM×55

10-3/4

273.1

1.0

5.8

＞100

48

3.2*6.0(Width*height)

ø5.0MM×55

12-3/4

323.9

1.0

5.8

＞120

37.2

3.0*5.0(Width*height)

ø4.0MM×56

14

355.6

1.0

2.9

＞80

37.8

3.0*5.0(Width*height)

ø4.0MM×59

16

426

1.0

2.9

＞80

37.5

3.0*5.0(Width*height)

ø4.0MM×54
