Heat Resistant Continuous Slot Screen , Solid Structure Wedge Wire Screen

Name: Heat Resistant Continuous Slot Screen Solid Structure Wedge Wire Screen
Brand: Heng Yuan
Price: 1 USD

China Heat Resistant Continuous Slot Screen , Solid Structure Wedge Wire Screen wholesale

Brand Name : Heng Yuan

Model Number : HY005

Certification : ISO9000

Place of Origin : Hebei,China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000pcs/Month

Delivery Time : 7-10 work days,according to the quantity

Packaging Details : Moister-Barrier with each piece,64 pcs per 20 ft container

Material : Stainless steel

Grade : 304

Slot size : 1.0 mm

Diameter : 10 ",273mm

Length : 5.8M

End connection : Wleded rings

Package : Woden box, Container

Contact Now

Heat Resisting Wedge Wire Screen Filter Wedge Wire Screen Easy Operate

Product Description:

Johnson Wound Water Well Screen is manufactured with V-shaped profile wire which is spirally wound around a cage of longitudinal support rods.There is a fixed value slot between each v wire, and the continuous slot, designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more effective development. The wrapped wire is V shape, and the support rod is O shape.

Specification:

MaterialA	Stainless steel
Grade	321
O.D	219 mm
Size	10 "
Length	5.8 m
Solt size	1.0 mm
End connection	Welded rings
Wire size	93 #
Support rod	140 #
Wire shape	V shape

Regular Specification:

SIZE (INCH)	O.D (MM)	SLOT (MM)	LENGTH (M)	COLLAPSE STRENGTH (BAR)	TENSILE WEIGHT (TON)	WRAP WIRE(WIDTH*HEIGHT) (MM)	RODS (MM)
3-1/2	88.9	1.0	3	＞22	10.2	2.3*3.5	3.8MM/22
4-1/2	114.3	1.0	3	＞28	11.5	2.3*3.5	3.8MM/22
6-5/8	168.3	0.75	5.8	＞40	12.8	2.3*3.5	3.8MM/32
6-5/8	168.3	1.0	5.8	＞33	12.8	2.3*3.5	3.8MM/32
6-5/8	168.3	0.63	5.8	＞83	45	3.2*6.0	6.0MM*32
8-5/8	219.1	1.0	5.8	＞34	21.9	2.3*3.5	3.8MM/48
8-5/8	219.1	1.0	5.8	＞50	38.2	3.0*5.0	4.0MM/48
8-5/8	219.1	1.0	5.8	＞60	46	3.2*6.0	5.0MM/48
10-3/4	273.1	0.75	5.8	＞50	32.9	2.3*3.5	4.9MM/55
10-3/4	273.1	1.0	5.8	＞60	39.5	3.0*5.0	4.9MM/55
10-3/4	273.1	1.0	5.8	＞100	48	3.2*6.0	5.0MM/55
12-3/4	323.9	1.0	5.8	＞120	37.2	3.0*5.0	4.0MM/50
14	355.6	1.0	3	＞80	37.8	3.0*5.0	4.0MM/59

Characteristics:

The welded stainless steel water well screen is made up of rods and warp. The rod can be round wire, triangular wire or wedge wire. The warp is triangular wire (wedge wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

Use:

solid structure, high temperature resistant, corrosion resistant, long service life, safety and reliability.
The end connection can be made parallel connection, screwed joint, taper joint and trapezoidal joint
the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filter.

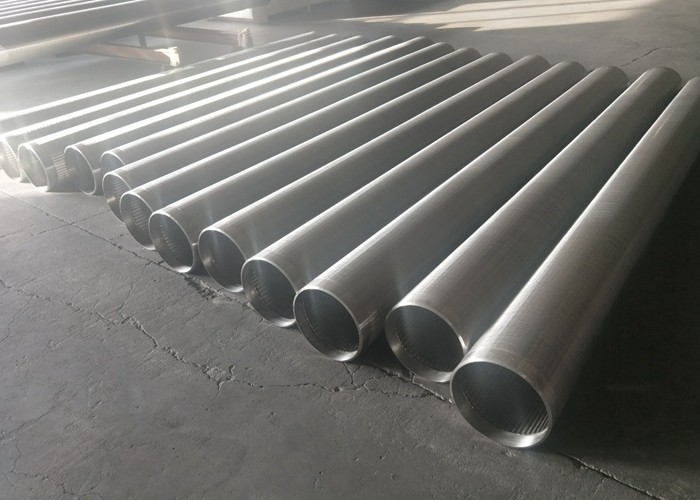

Pictures:

Heat Resistant Continuous Slot Screen , Solid Structure Wedge Wire Screen
