Stainless Steel Wedge Wire Screen Panels For Coal Washing Equipment
Wedge Wire Screen Panels Description:
Wedge Wire Screen Panel is welded by V wire and support rod.
There is a fixed value slot between each v wire.
The support bar can be a round wire or a triangular wire or a trapezoidal wire.
Wedge Wire Screen Panels Specification:
| Material | Stainless steel |
| Grade | 304 |
| Dimension | 1500 * 500 m, request |
| Slot Size | 1.0 mm |
| Width | up tp 4000mm |
| Length | up to 4000mm |
| Type | Screen plate |
| Wire size | 3*4.6 mm |
| Support rod | 3*4.6mm with flat steel bar |
| Wire shape | V shape |
Wedge Wire Screen Panels Regular Specifications:
Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized
Slot: 0.1mm - 100mm
Discrepancy: + / - 0.05mm
Dimension: width up to 4000 mm
Length up to 4000mm
Specification of the wrap wire:1*2 mm, 2*3 mm, 2.2 * 3.5 mm, 3 * 4.6 mm and so on.
Specification of the rod: 2 * 3 mm, 3 * 4.6 mm, 3 * 5 mm, 4 * 4 mm ( square shape ) and so on.
Special specification can be made according to your need.
Wedge Wire Screen Panels Feature:
1) long service life
2) high opening rating
3) Uniform screen seam, stable welding quality
4) good strength, stiffness and load capacity
5)Strong to be acidproof , alkali-resisting , bear high temperature , pulling force and wearability
Wedge Wire Screen Panels Advantages:
Wedge wire and support rod adopt the international advanced continuity resistance welding technology automation mine screen mesh welding production equipment, sieve seam even, stable welding quality, wear-resisting, long service life and has a high strength, stiffness and bearing capacity, can make various shapes of the rigid screening filter device. And the screen seam is v - shaped, easy to leak, not easy to plug.
Product Tags:
|
|

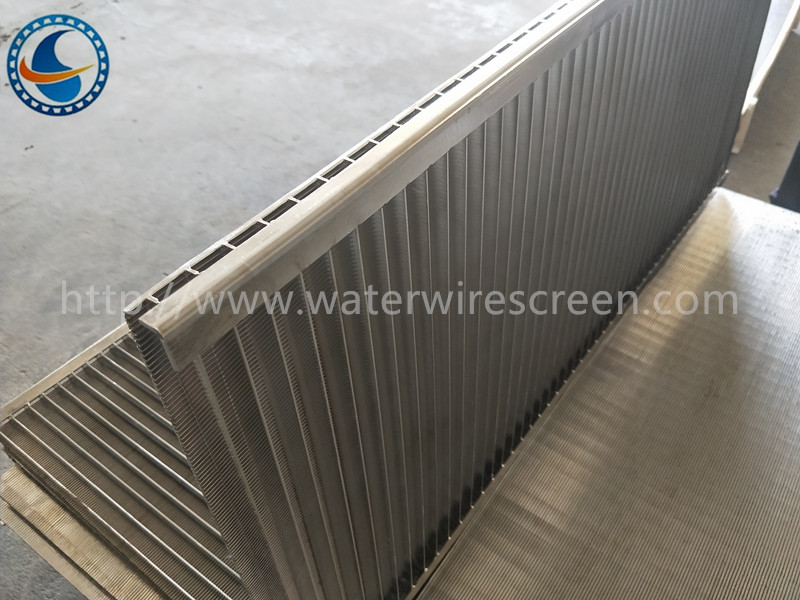

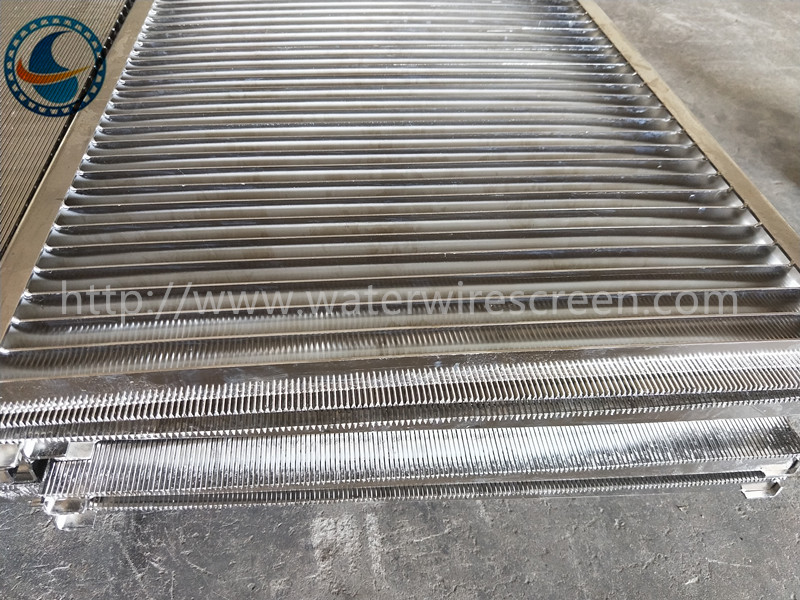

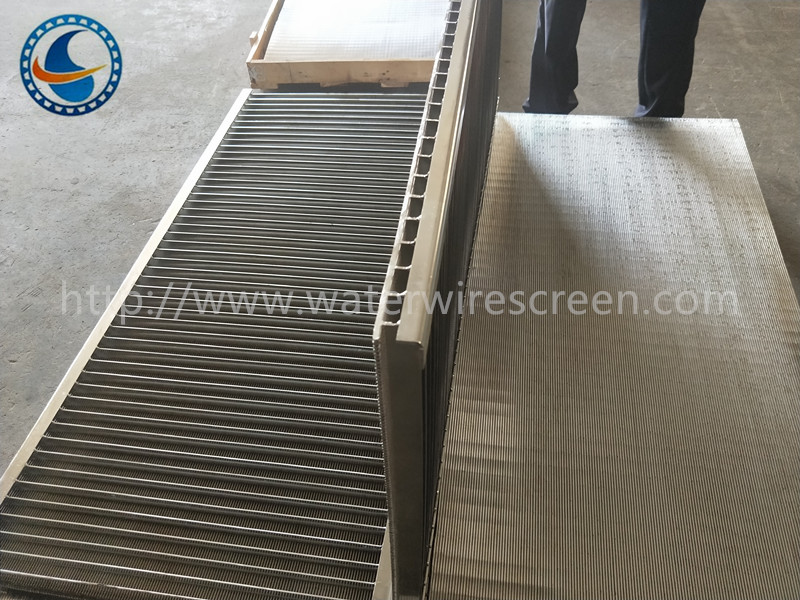

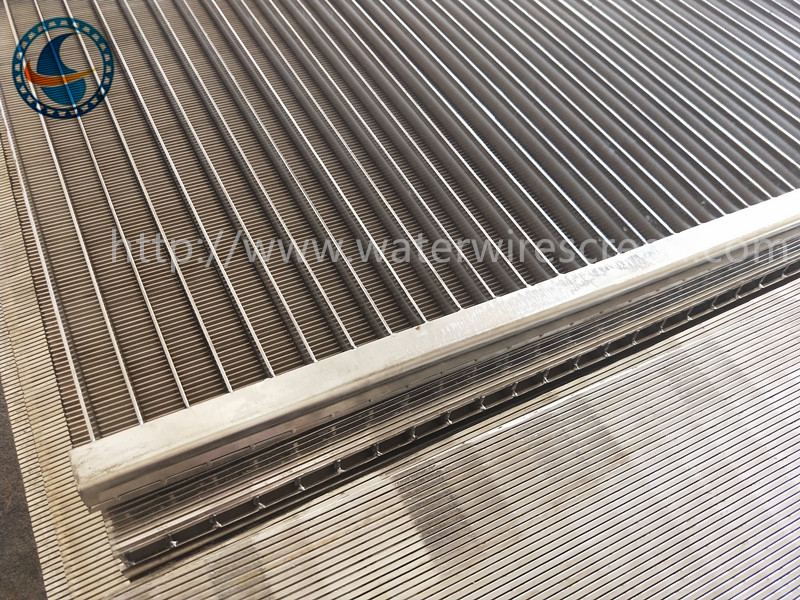

L500mm Stainless Steel Wedge Wire Screen Panels For Coal Washing Equipment Images
|
