4000mm Length Stainless Steel Curved Wedge Wire Screen Filter

Name: 4000mm Length Stainless Steel Curved Wedge Wire Screen Filter
Brand: Heng Yuan
Price: 1 USD

China 4000mm Length Stainless Steel Curved Wedge Wire Screen Filter wholesale

Brand Name : Heng Yuan

Model Number : HY092403

Certification : ISO9000

Place of Origin : Hengshui city,Hebei,China

MOQ : 1pcs

Price : Negotiation

Payment Terms : L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000pcs/Month

Delivery Time : 7-10 work days,according to the quantity

Packaging Details : Wooden box

Name : Curved Wedge Wire Screen Filter

Material : Stainless steel

Slot size : 0.1-100mm

Max length : 4000mm

Max width : 4000mm

Wire size : 1.5*2mm or others

Support rod : 2*3mm or others

Surface : Acid washing

Package : Wooden box

Use : Filtration

Contact Now

Stainless Steel Curved Wedge Wire Screen Filter

Curved Wedge Wire Screen Filter Introduction:

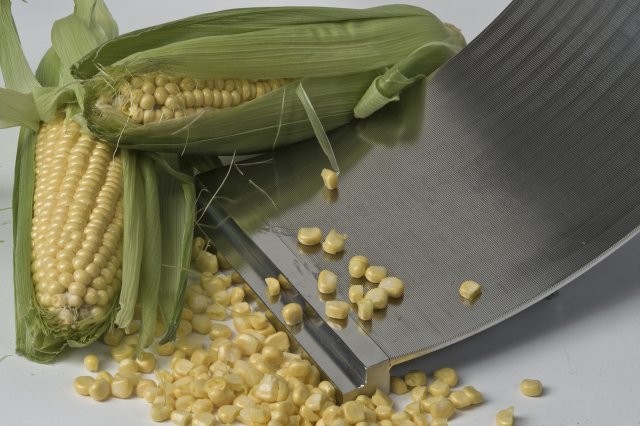

Curved wedge wire screens facilitate inexpensive and easy solid-liquid separation of stones, sand, fibers and organic elements.

The simple functional principle is based on the curved shape of the screen.

The materials slide along the screen surface by means of gravity while the liquid passes through the screen.

Due to the use of wedge wire screen technology, bow screens are a durable and low-maintenance screening element.

Curved Wedge Wire Screen Filter Specification:

Material:stainless steel 201, 304,316L, or Duplex steel 2205, 2507 etc.
Slot size(Opening):0.025-100mm or customer's requirement.
Support bars pitch:10-20mm or customer's requirement.

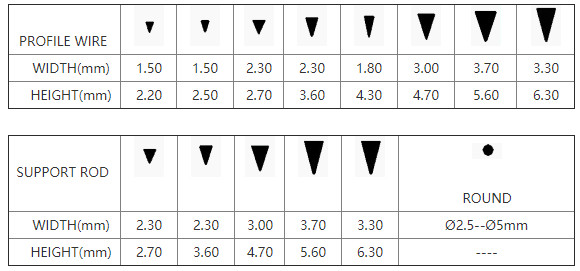

Wedge wire size:1*2mm, 1.2*2mm, 1.5*2mm, 2*3mm, 2*3.5mm, 2.2*3.5mm, 3*4.6mm etc.

Support rod size: 2*3mm,3*4.5mm, 3*5mm, 3*6mm etc.

4000mm Length Stainless Steel Curved Wedge Wire Screen Filter

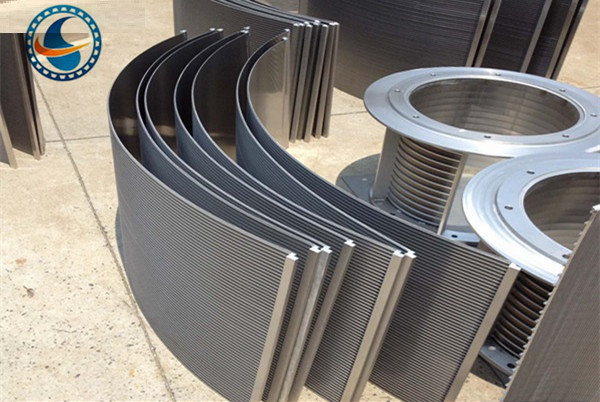

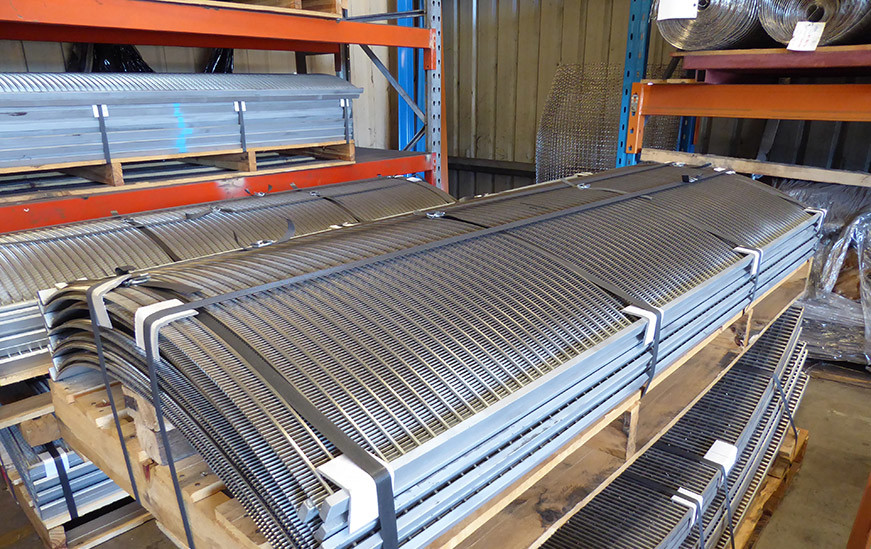

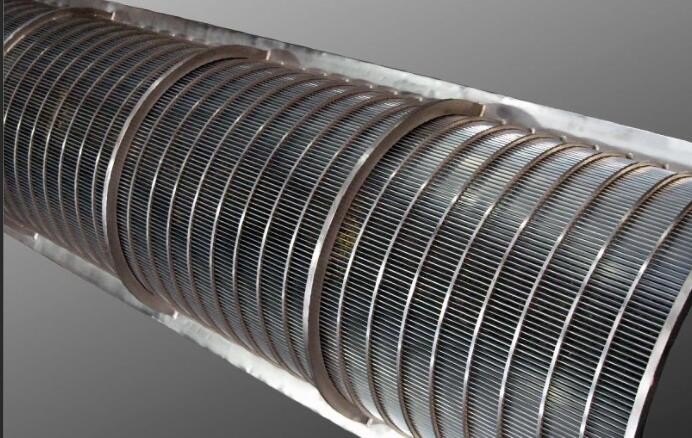

Curved Wedge Wire Screen Filter Pictures:

4000mm Length Stainless Steel Curved Wedge Wire Screen Filter
