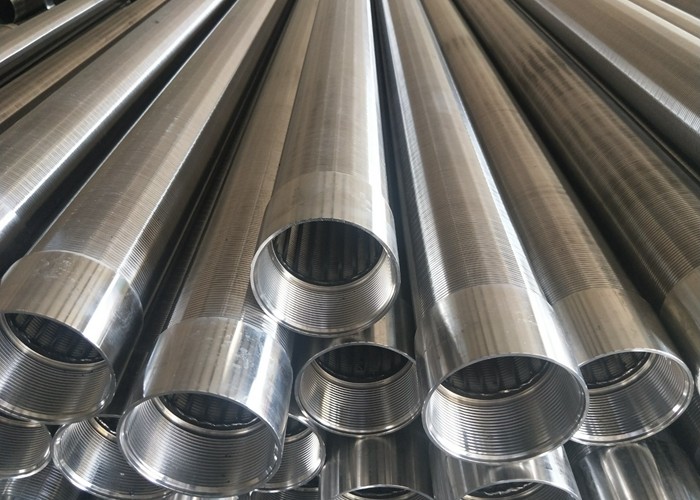

Sand Control Screens /Solid-Liquid Separation Screen Tube/ Profile Wire Screen
Sand Control Screens Introduction:
The full-program welding guarantees the strict continuous integrity of the product, which makes it form the ideal gap size.
Compared with the welding process commonly used in China, the filter water pipe or sieve plate produced by us has a smooth pipe surface. Produces angular edges, no burrs, uniform gaps and no leakage of grease.
All production processes are produced by professional production personnel using advanced and sophisticated professional equipment. Product specifications and raw materials can be customized according to customer needs (usually used 304, 316, 316L), all products are strictly in accordance with the product authority standards for production inspection, to ensure product quality, thereby ensuring the interests of our customers, with the most economical investment Get the highest productivity.
| Specification (wedge wire): | Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
| Specification (support rod): | Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm |
| Note: other specifications available as per request |
| Slot size | 0.10, 0.15, 0.20, 0.25, 0.30... 6.00mm also achieved upon request. |
| Material: | galvanized low carton (LCG), stainless steel (304,316 etc.) |
| Length | up to 6 meters. |
| Diameter | from 25mm to 1200mm. |
| End connection | Plain beveled ends, flanged or threaded couplings |
Material: stainless steel 304, 316, 304L 316L sieve or low carbon steel galvanized wire.
Outer diameter: 4 inches, 6 inches, 8 inches, 10 inches, 12 inches, etc. (20mm-1000mm)
Gap: 0.025mm---35mm
Standard length: 50mm-6000mm
End connection: threaded or Welded rings
Wire size: 2.2*3.0mm, 2.3*3.0mm, 3.0*4.6mm, 3.0*5.0mm, etc.
Support size: 3.8mm / 22, 3.8mm / 32, 3.8mm / 48, 3.8mm / 50
The gap can be as small as 0.025mm and the outer diameter can be up to 2500. The longest can reach 6000mm.
